Product Description

Loudspeaker 102mm YD102-20-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD102-20-4F60P-R

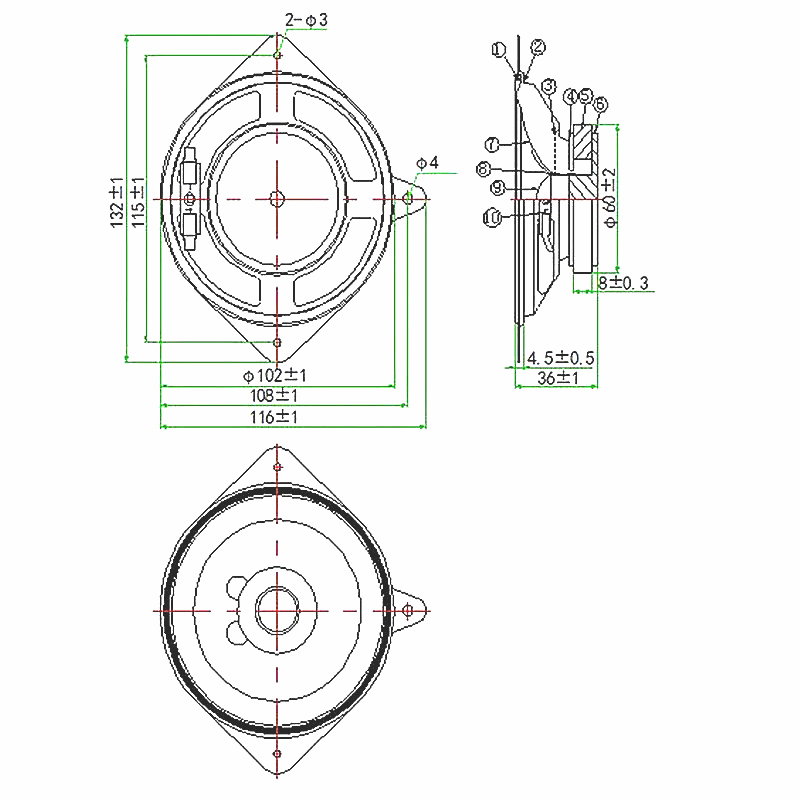

Dimension:Φ102*36H mm
Cone Material:PP
Edge:Rubber
Nominal Power:15W
Maximum Power:20W
Impedance:4±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:110±20%Hz

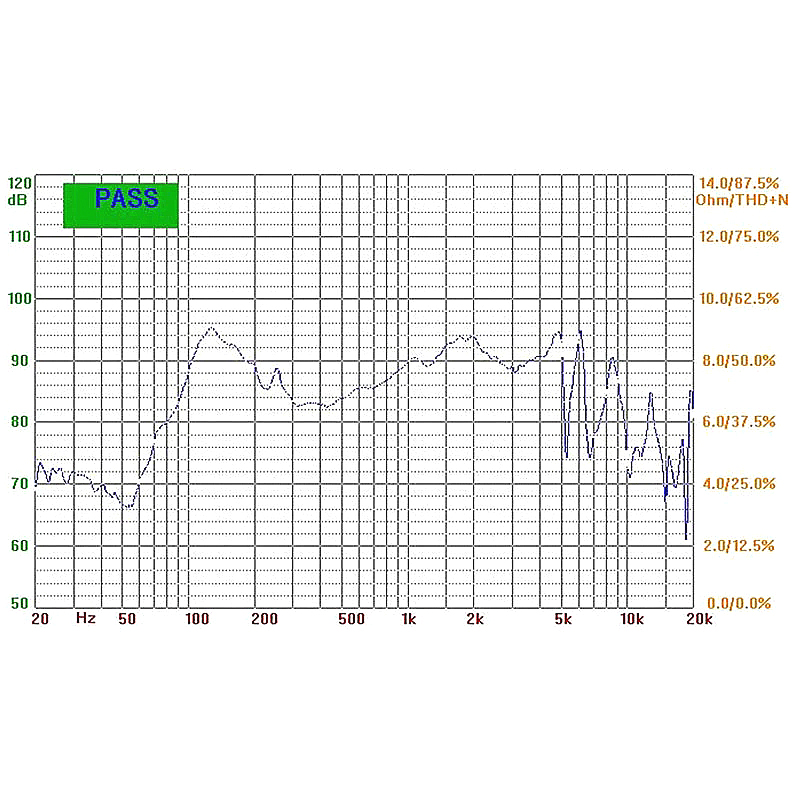

Response:Fo~10KHZ
S.P.L:88±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*8mm
Net weight:225g±8%
