Car Speaker

Loudspeaker 102mm YD102-05-4F60P Min Full Range car Speaker Drivers

  • Loudspeaker 102mm YD102-05-4F60P Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD102-05-4F60PDimension:102*137*41HmmCone Material:PaperEdge:Rubber Nominal Power:25WMaximum Power:30W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD102-05-4F60P
  • Diameter: 102*137*41Hmm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 102mm YD102-05-4F60P Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD102-05-4F60P

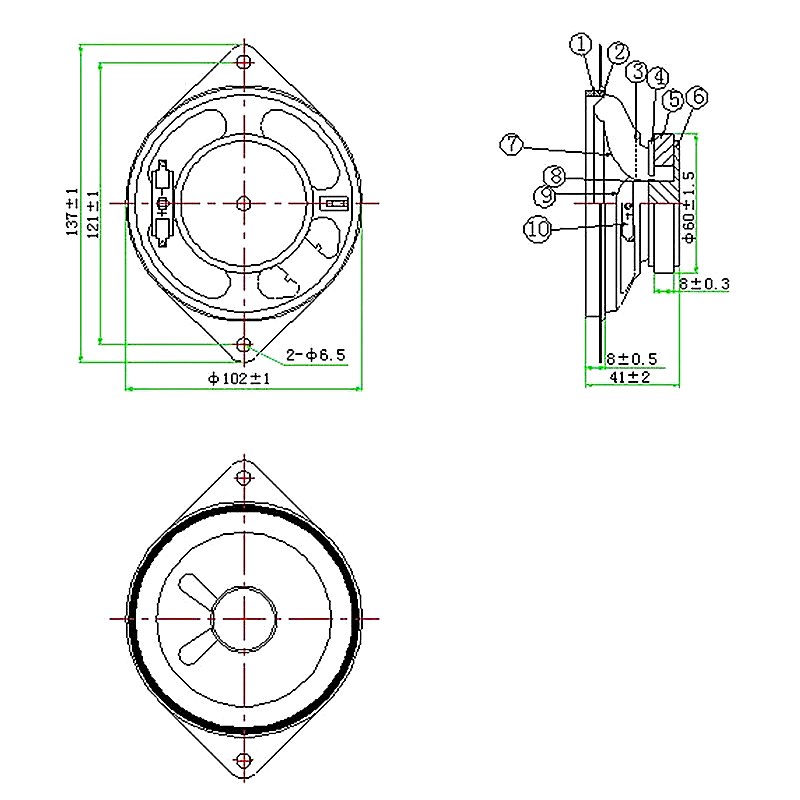

Dimension:102*137*41Hmm
Cone Material:Paper
Edge:Rubber
Nominal Power:25W
Maximum Power:30W
Impedance:4±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:150±20%Hz

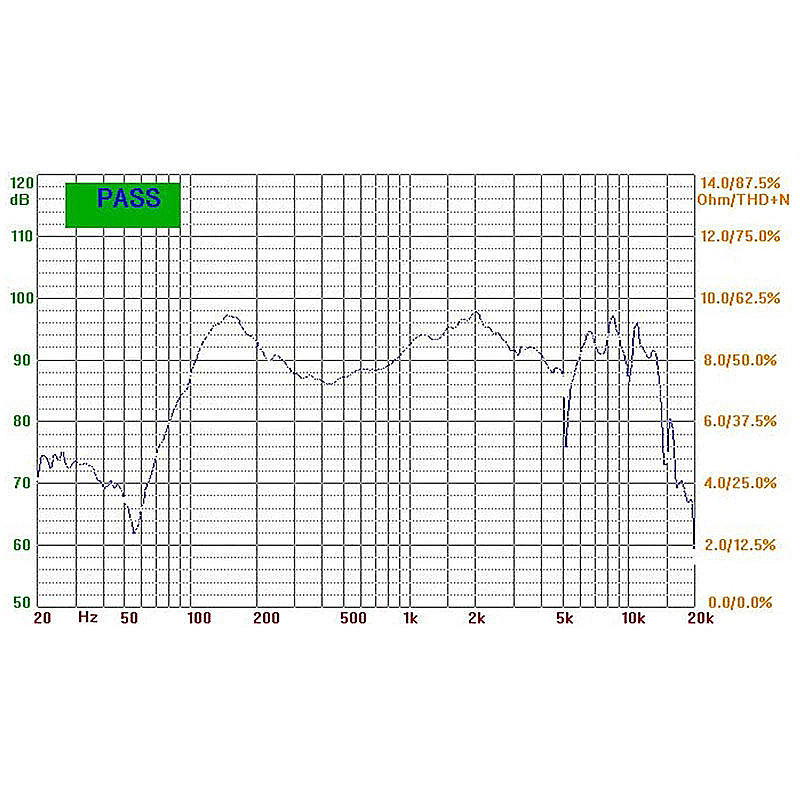

Response:Fo~15KHZ
S.P.L:91±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*8mm
Net weight:225g±8%
