Product Description

Loudspeaker 101mm YD101-01-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd

未标题-1





ModelYD101-01-4F60P-R

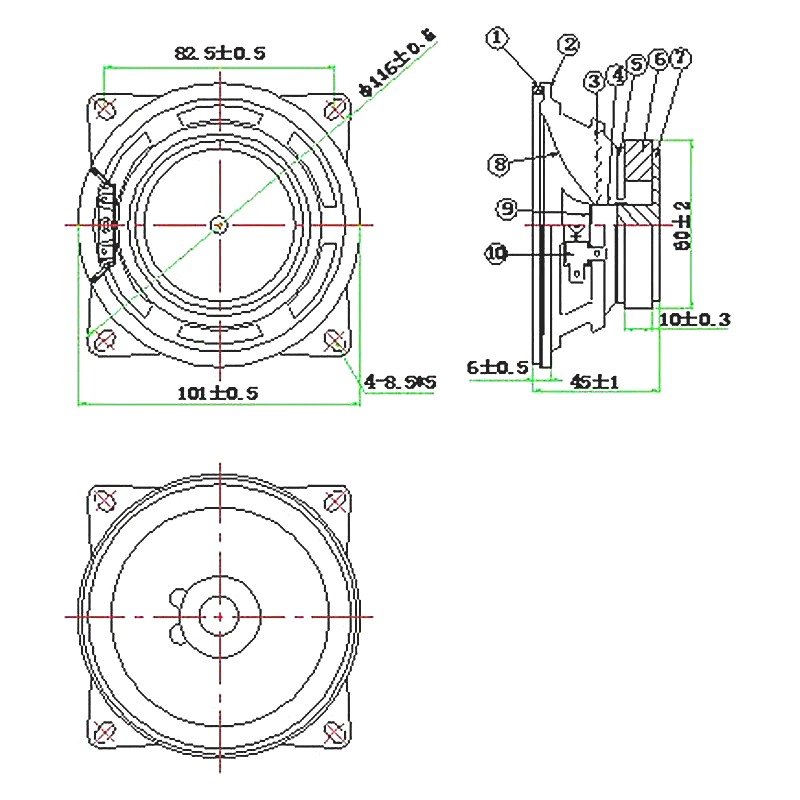

Dimension:101*45H mm
Cone Material:PP
Edge:Foam
Nominal Power:20W
Maximum Power:30W
Impedance:4±15%Ω
Voice coil:Φ14.28 mm ASV+Cu
Fo:120±20%Hz

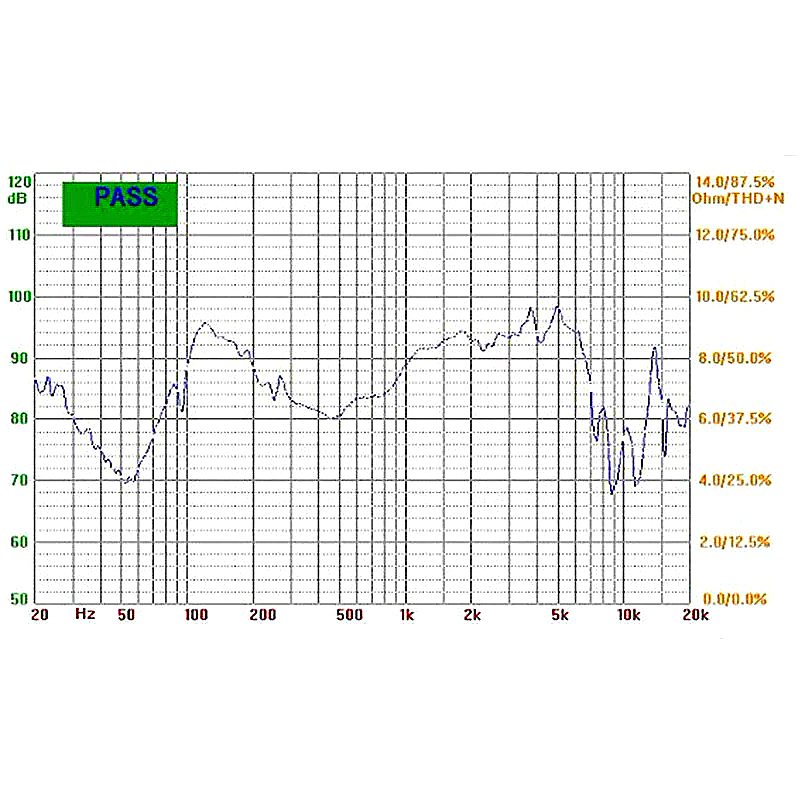

Response:Fo~15KHZ
S.P.L:85±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*10mm
Net weight:243g±8%
