Car Speaker

Loudspeaker YD100-15A-8F60U 104mm*104mm 4" Car Speaker Unit Used for Audio System

  • Model：YD100-15A-8F60UDiameter: 104x104Cone Material: PaperEdge: FoamNominal Power: 15WMaximum Power: 25WImpedance: 815%ΩFo: 11520%HzResponse: Fo-15kHzS.P.L: 883dB/W/MMagnet Size: Φ60Φ3210Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD100-15A-8F60U
  • Diameter: 104x104
  • Description
  • Order

Product Description

YD100-15A-8F60U-Model

Model：YD100-15A-8F60U

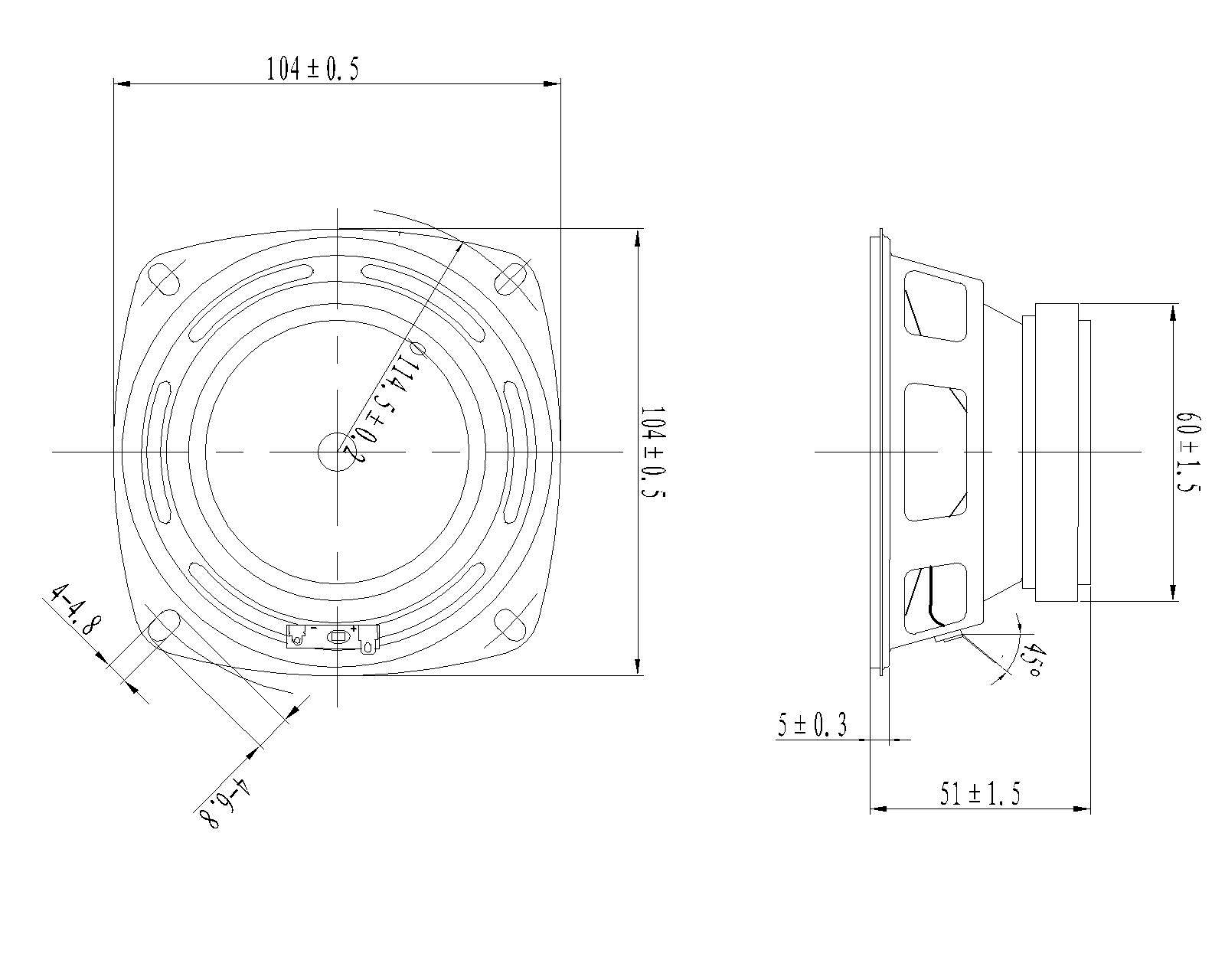

Diameter: 104x104
Cone Material: Paper
Edge: Foam
Nominal Power: 15W
Maximum Power: 25W
Impedance:  8±15%Ω
Fo: 115±20%Hz

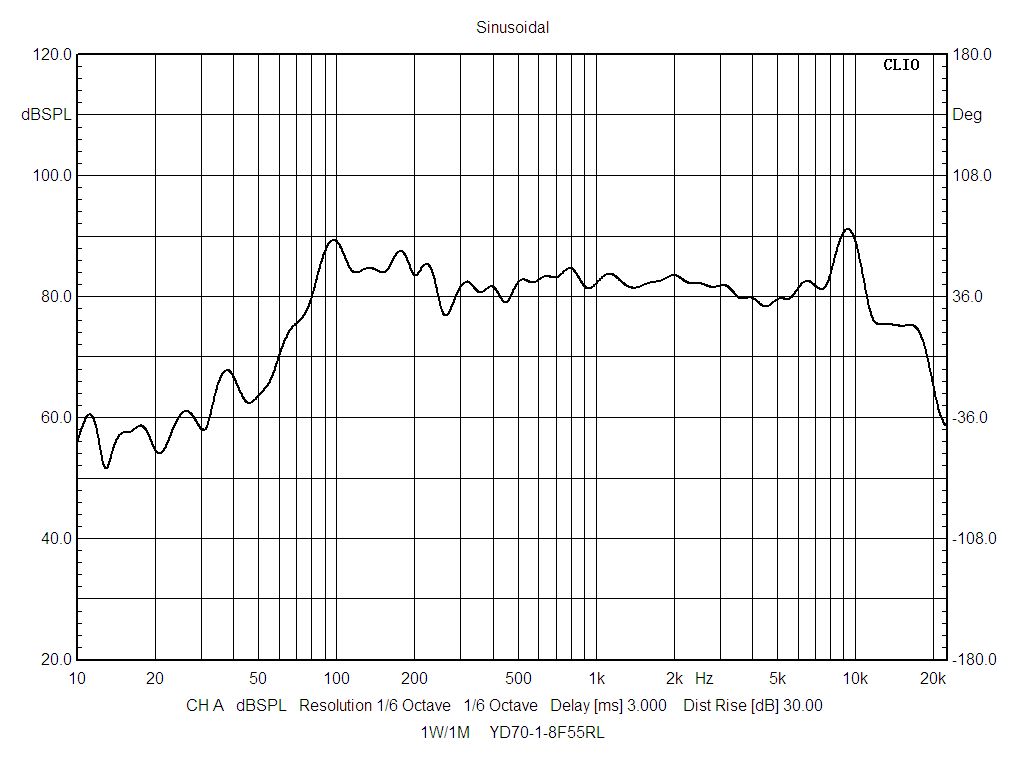

Response: Fo-15kHz
S.P.L: 88±3dB/W/M
Magnet Size: Φ60×Φ32×10
Net weight:

YD100-15A-8F60U-Q
