Car Speaker

Loudspeaker YD100-14-4F50U 94mm*94mm 3.7" Car Speaker Unit Used for Audio System

  • Model：YD100-14-4F50UDiameter: 100x100Cone Material: PaperEdge: FoamNominal Power: 10WMaximum Power: 15WImpedance: 415%ΩFo: 12020%HzResponse: Fo-15kHzS.P.L: 863dB/W/MMagnet Size: Φ50Φ2510Net weight:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD100-14-4F50U

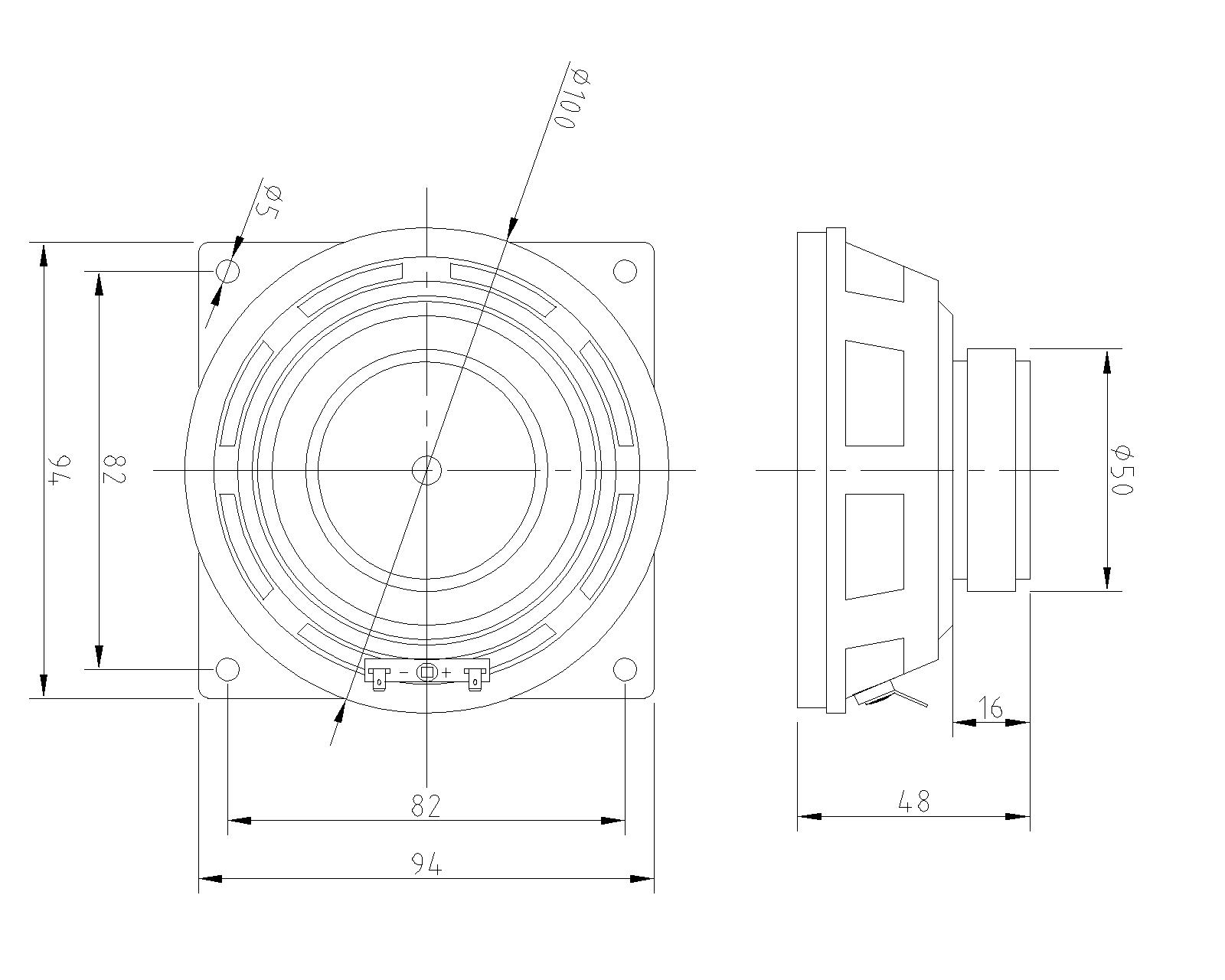

  • Diameter: 100x100
  • Description
  • Order

Product Description


YD100-14-4F50U-Model


Model：YD100-14-4F50U
Diameter: 100x100
Cone Material: Paper
Edge: Foam
Nominal Power: 10W
Maximum Power: 15W
Impedance:  4±15%Ω
Fo: 120±20%Hz
Response: Fo-15kHz
S.P.L: 86±3dB/W/M
Magnet Size: Φ50×Φ25×10
Net weight:

YD100-14-4F50U(马克波罗4寸)-Q
