Car Speaker

Loudspeaker 78mm YD78-01-4F60P-R 4 ohm Min Full Range car Speaker Drivers

  • Loudspeaker 78mm YD78-01-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co LtdModelYD78-01-4F60P-RDimension:78*78*41H mmCone Material:PaperEdge:Rubber Nominal Power:10WMaximum Power:12W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD78-01-4F60P-R
  • Diameter: 78*78*41H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 78mm YD78-01-4F60P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD78-01-4F60P-R

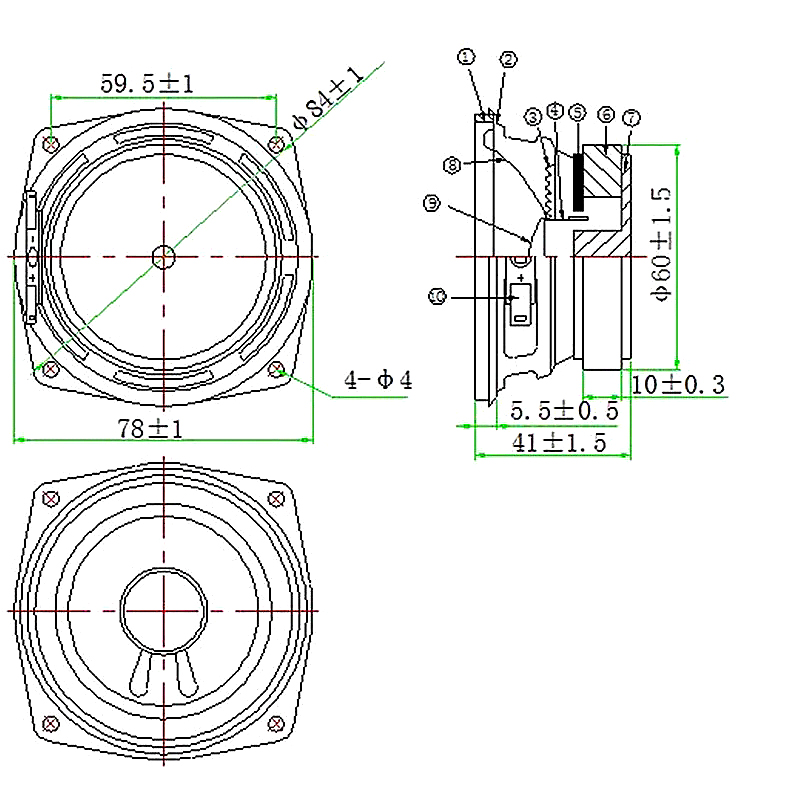

Dimension:78*78*41H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:12W
Impedance:4±15%Ω
Voice coil:Φ19.45mm ASV+Cu
Fo:130±20%Hz

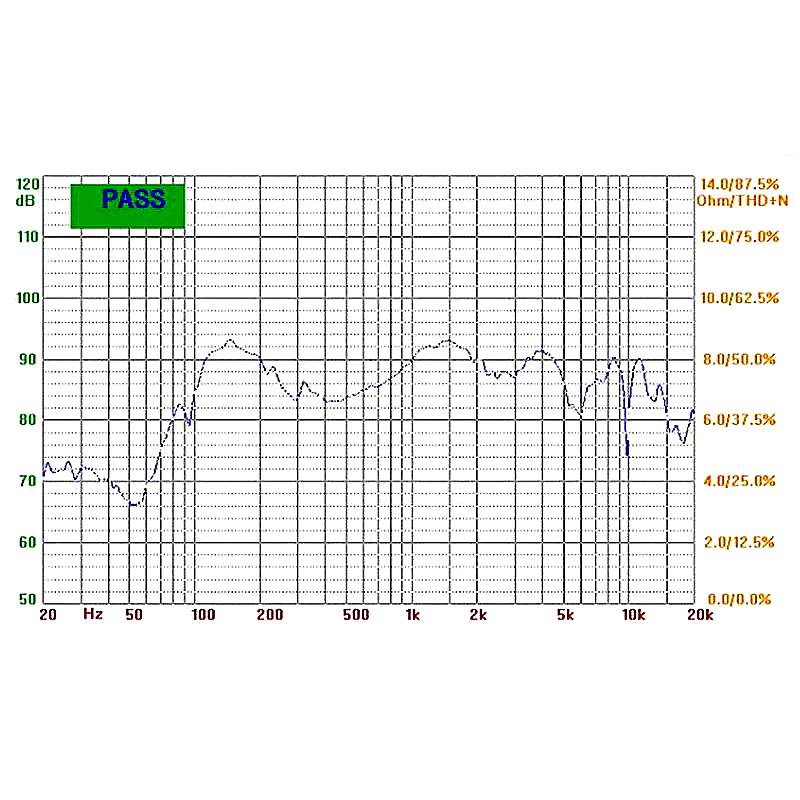

Response:Fo~15KHZ
S.P.L:89±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ60*32*10mm
Net weight:240g±8%
