Blue Tooth Audio Speaker

Loudspeaker 78mm YD78-01-8F60P-R 8 ohm Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 78mm YD78-01-8F60P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD78-01-8F60P-RDimension:78*78*41H mmCone Material:PPEdge:RubberNominal Power:10WMaximum P

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD78-01-8F60P-R
  • Diameter: 78*78*41H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 78mm YD78-01-8F60P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD78-01-8F60P-R

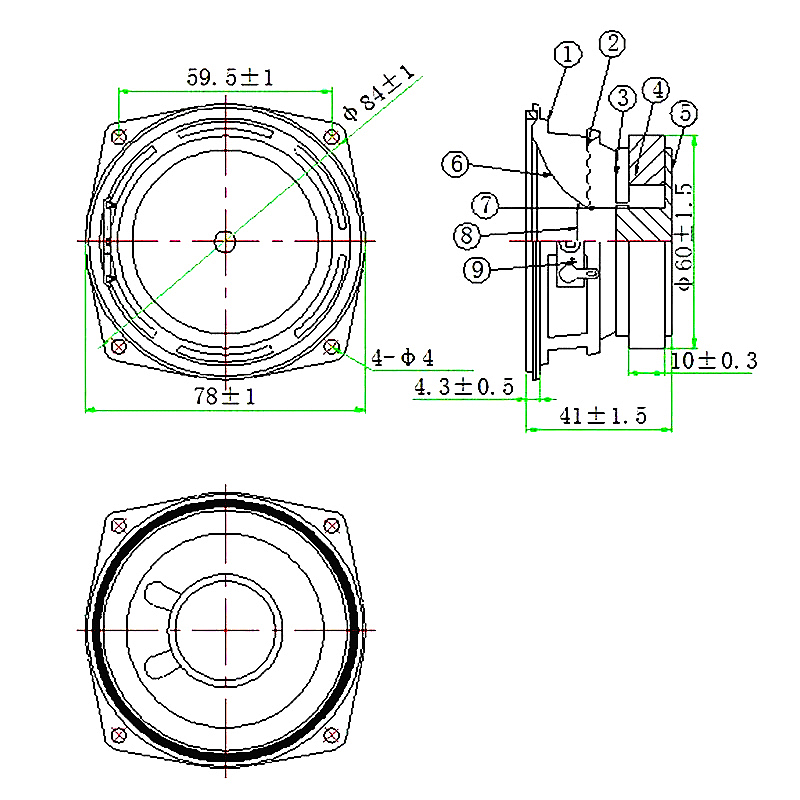

Dimension:78*78*41H mm
Cone Material:PP
Edge:Rubber
Nominal Power:10W
Maximum Power:11W
Impedance:8±15%Ω
Voice coil:Φ13.28mm ASV+Cu
Fo:110±20%Hz

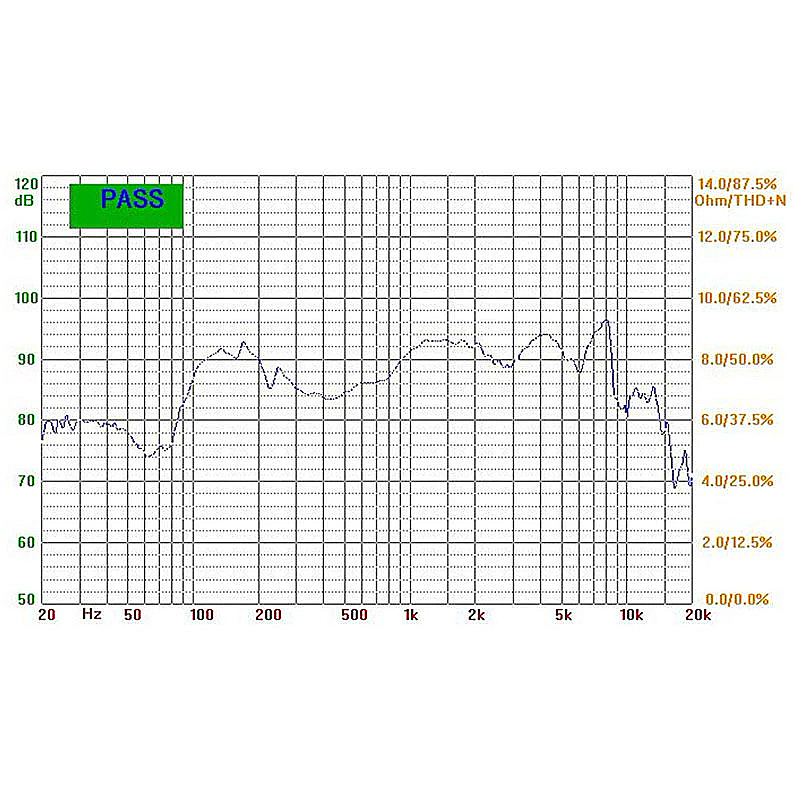

Response:Fo~10KHZ
S.P.L:90±3dB(AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ60*32*10mm
Net weight:250g±8%
