Blue Tooth Audio Speaker

Loudspeaker 70mm YD70-05-8F45P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 70mm YD70-05-8F45P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD70-05-8F45P-RDimension:70*70*34HmmCone Material:PaperEdge:RubberNominal Power:5WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD70-05-8F45P-R
  • Diameter: 70*70*34Hmm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 70mm YD70-05-8F45P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD70-05-8F45P-R

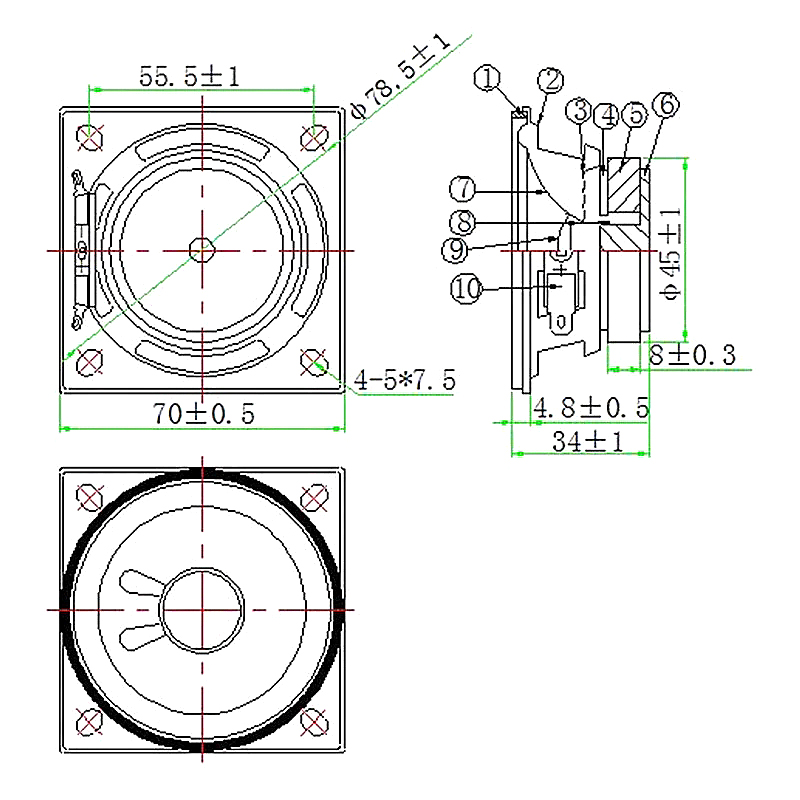

Dimension:70*70*34Hmm
Cone Material:Paper
Edge:Rubber
Nominal Power:5W
Maximum Power:6W
Impedance:8±15%Ω
Voice coil:Φ13.28mm ASV+Cu
Fo:150±20%Hz
Response:Fo~20KHZ
S.P.L:91±3dB(AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ45*22*8mm
Net weight:120g±8%
