Loudspeaker 70mm YD70-06-8F60P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 70mm YD70-06-8F60P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD70-06-8F60P-RDimension:70*70*38H mmCone Material:PaperEdge:RubberNominal Power:5WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD70-06-8F60P-R
  • Diameter: 70*70*38H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 70mm YD70-06-8F60P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD70-06-8F60P-R

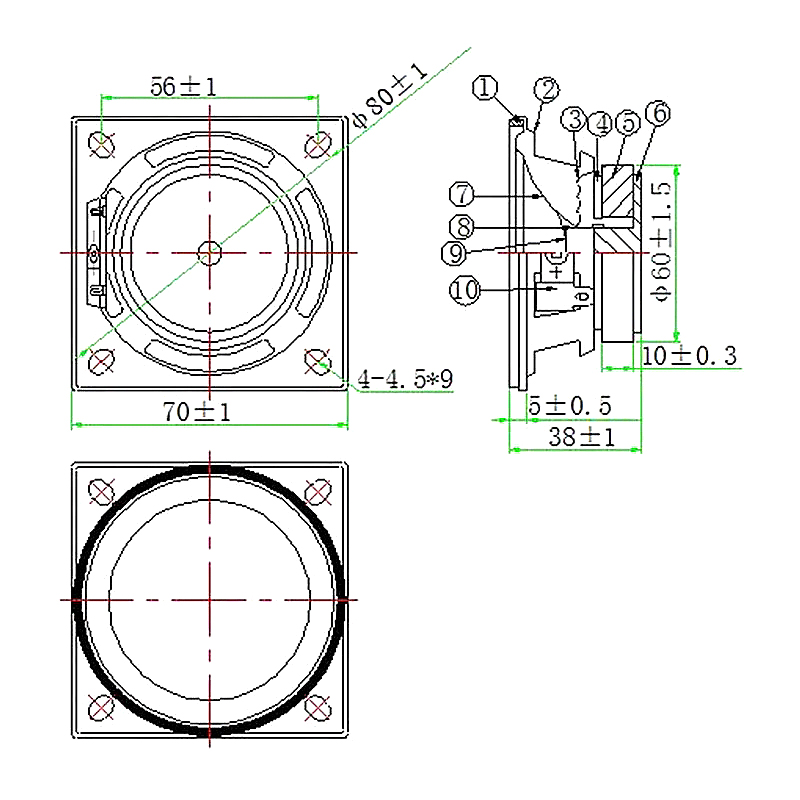

Dimension:70*70*38H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:5W
Maximum Power:6W
Impedance:8±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:180±20%Hz

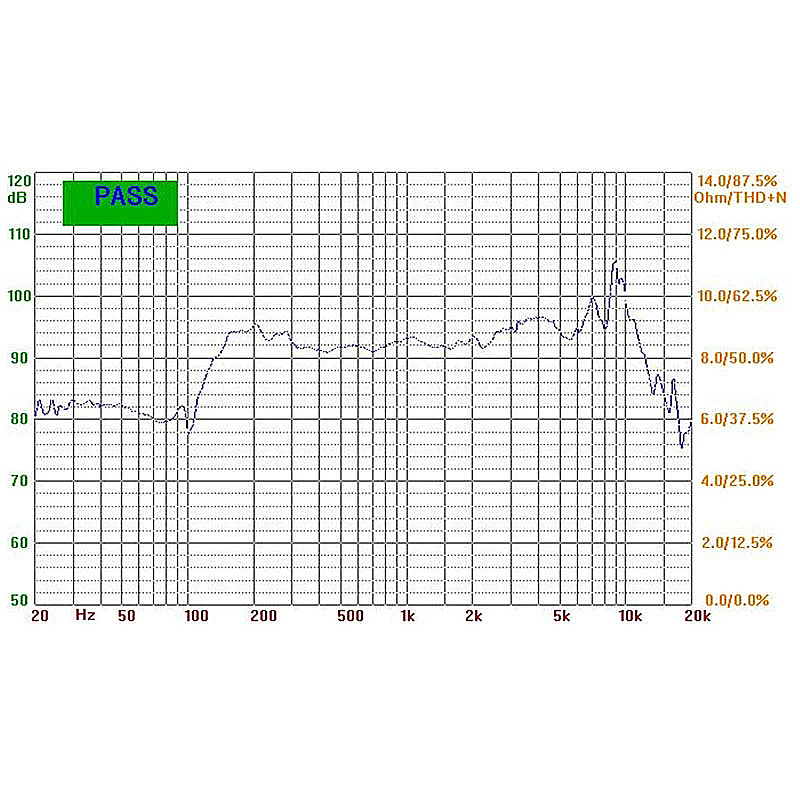

Response:Fo~10KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ60*32*10mm
Net weight:240g±8%
