Blue Tooth Audio Speaker

Loudspeaker 53mm YD53-02-4N15.5P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 53mm YD53-02-4N15.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD53-02-4N15.5P-RDimension:53*53*28H mmCone Material:PaperEdge:RuberNominal Power:5WMaxi

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD53-02-4N15.5P-R
  • Diameter: 53*53*28H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 53mm YD53-02-4N15.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



ModelYD53-02-4N15.5P-R

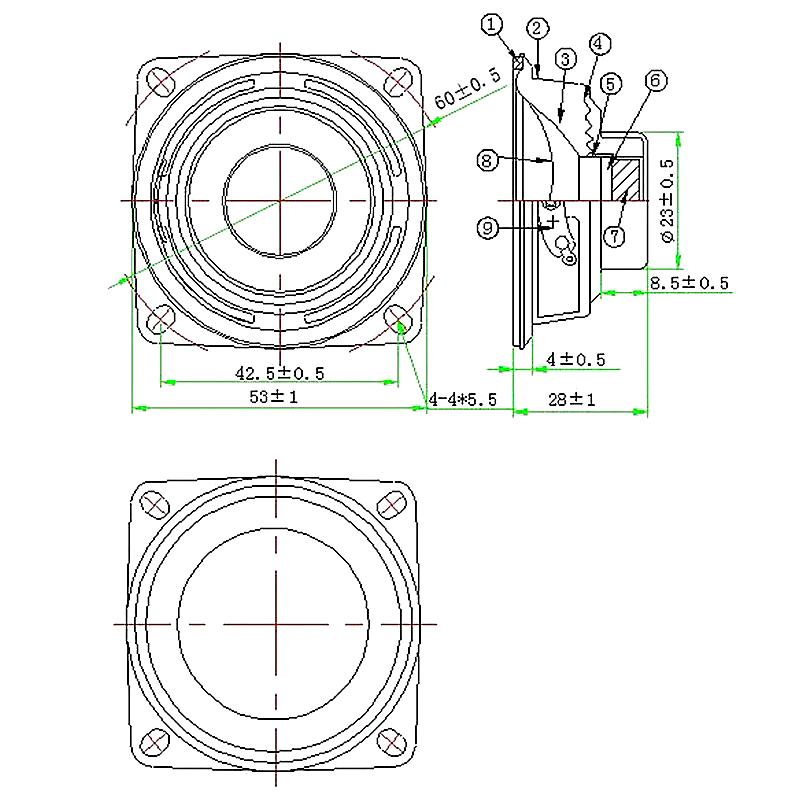

Dimension:53*53*28H mm
Cone Material:Paper
Edge:Ruber
Nominal Power:5W
Maximum Power:8W
Impedance:4±15%Ω
Voice coil:Φ16.28mm PSV+Cu
Fo:150±20%Hz

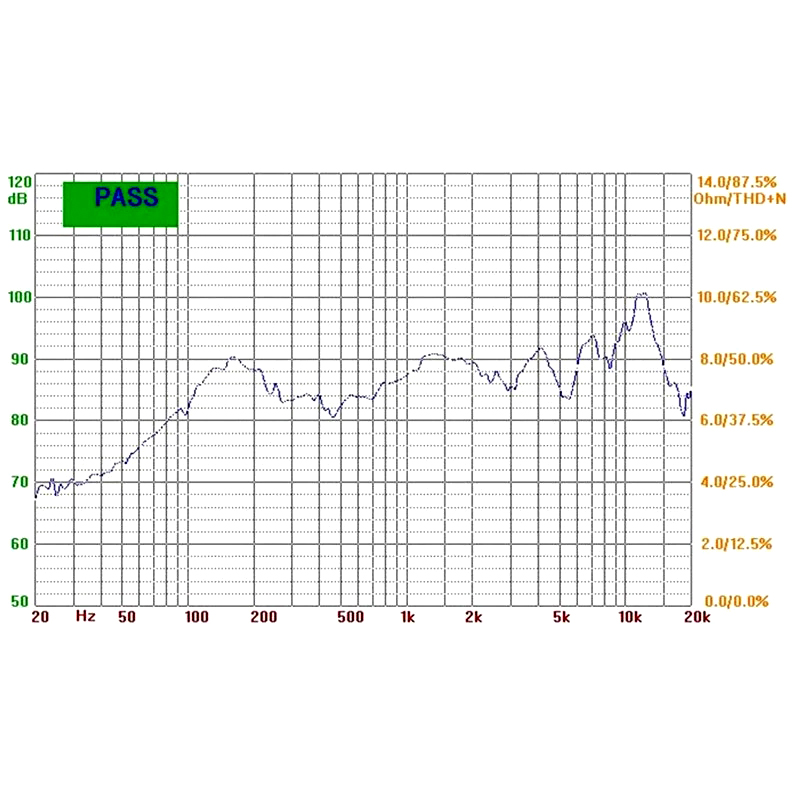

Response:Fo~20KHZ
S.P.L:87±3dB(AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ15.5*5.0mm
Net weight:35g±8%
