Blue Tooth Audio Speaker

Loudspeaker 52mm YD52-05-4F40P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 52mm YD52-05-4F40P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD52-05-4F40P-RDimension:52*68*31H mmCone Material:PU+PaperEdge:PaperNominal Power:3WMaxim

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD52-05-4F40P-R
  • Diameter: 52*68*31H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 52mm YD52-05-4F40P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD52-05-4F40P-R

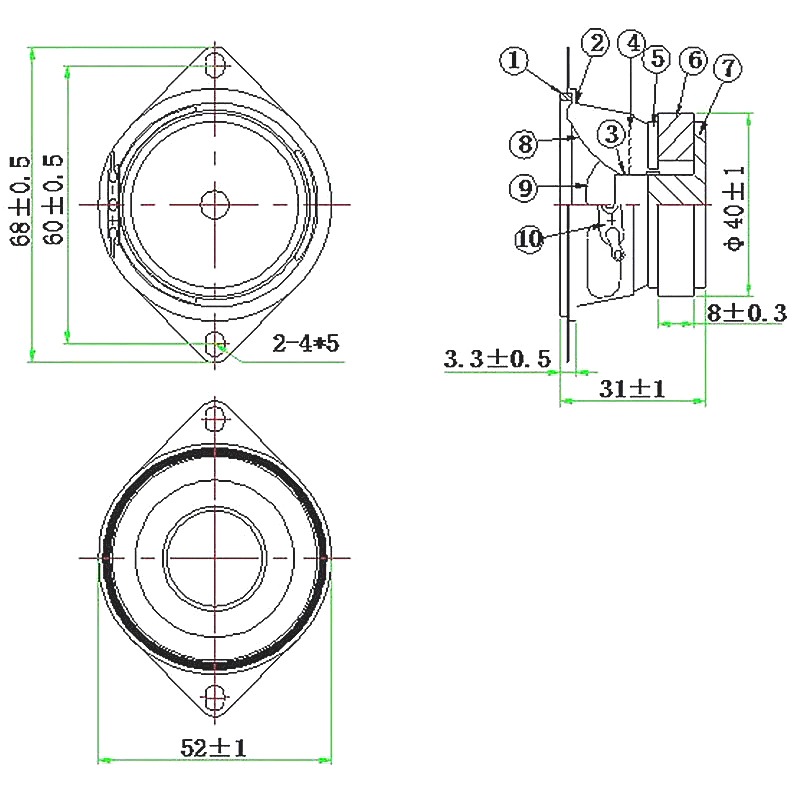

Dimension:52*68*31H mm
Cone Material:PU+Paper
Edge:Paper
Nominal Power:3W
Maximum Power:5W
Impedance:4±15%Ω
Voice coil:Φ13.28mm  PL+Cu
Fo:140±20%Hz

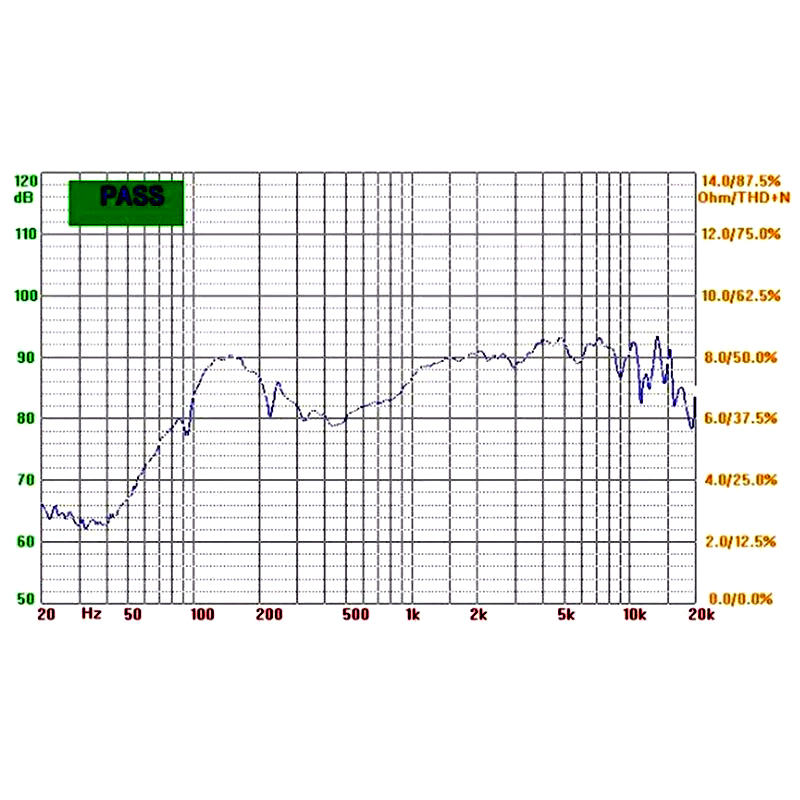

Response:Fo~20KHZ
S.P.L:85±3dB(AT 0.1M/0.1W,Average of  0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40*19*8mm
Net weight:90g±8%
