Blue Tooth Audio Speaker

Loudspeaker 52mm YD52-01-4N15P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 52mm YD52-01-4N15P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD52-01-4N15P-RDimension:52*40*19.5H mmCone Material:PU+PaperEdge:PaperNominal Power:3WMax

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD52-01-4N15P-R
  • Diameter: 52*40*19.5H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 52mm YD52-01-4N15P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



ModelYD52-01-4N15P-R

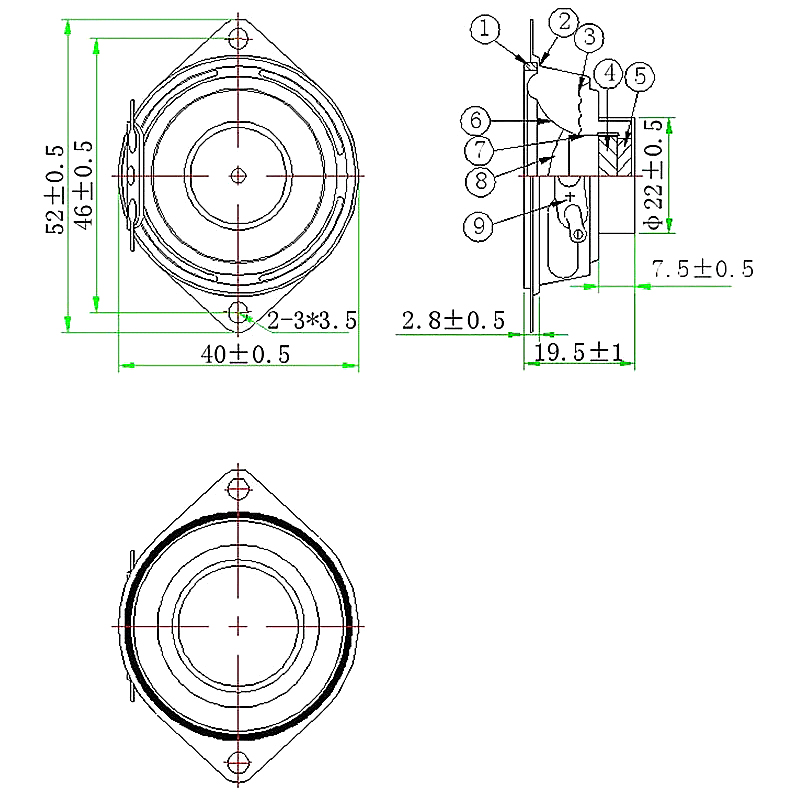

Dimension:52*40*19.5H mm
Cone Material:PU+Paper
Edge:Paper
Nominal Power:3W
Maximum Power:5W
Impedance:4±15%Ω
Voice coil:Φ16.28mm KSV+Cu
Fo:250±20%Hz

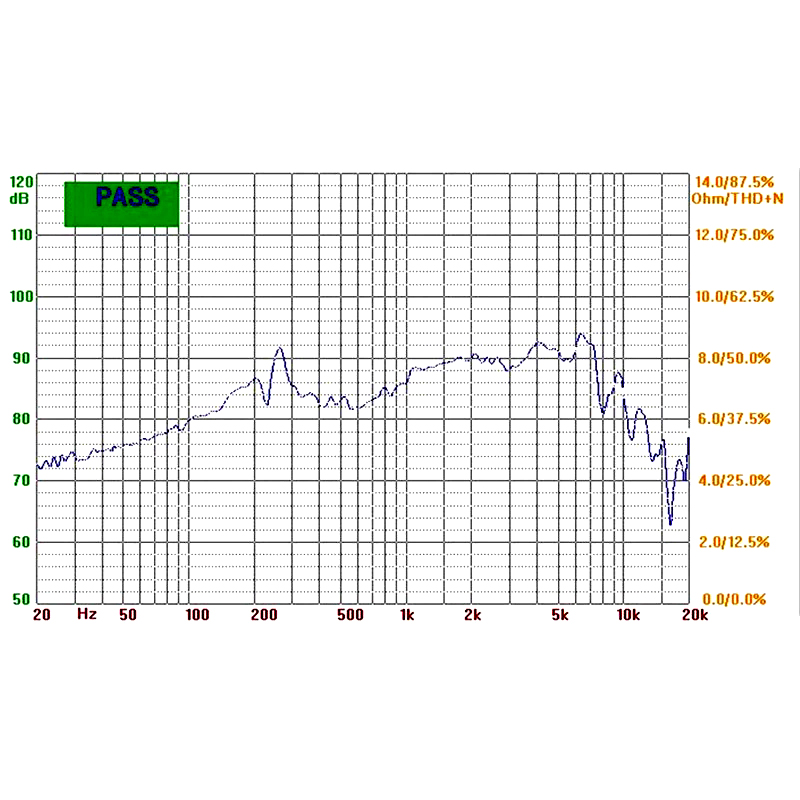

Response:Fo~10KHZ
S.P.L:85±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ15*4.0mm
Net weight:25g±8%
