Product Description

Loudspeaker 52mm YD52-04-4N32P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD52-04-4N32P-R

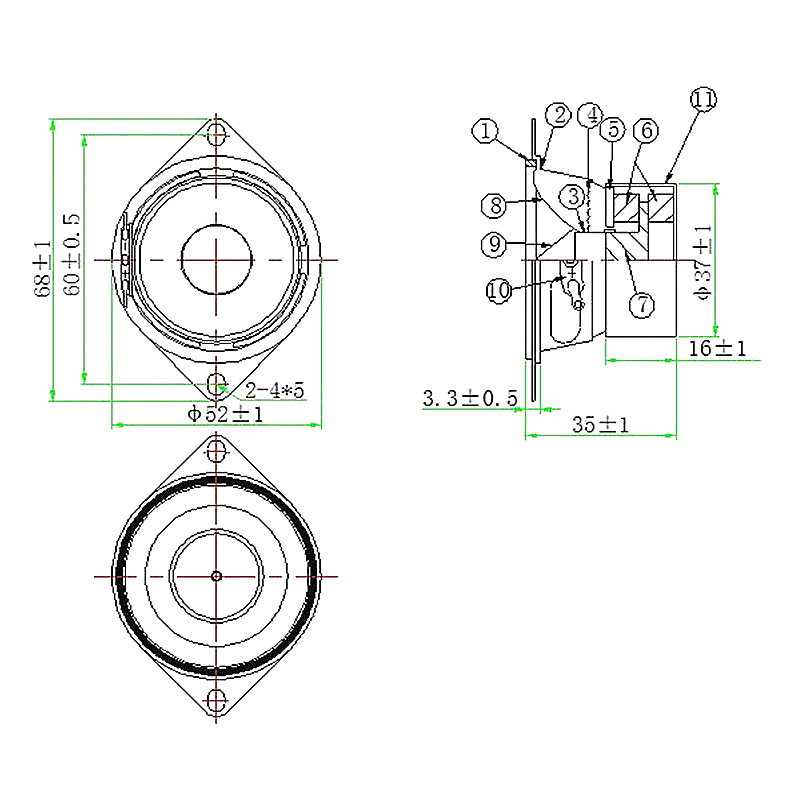

Dimension:52*68*35H mm
Cone Material:Paper
Edge:Foam
Nominal Power:5W
Maximum Power:6W
Impedance:4±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:180±20%Hz

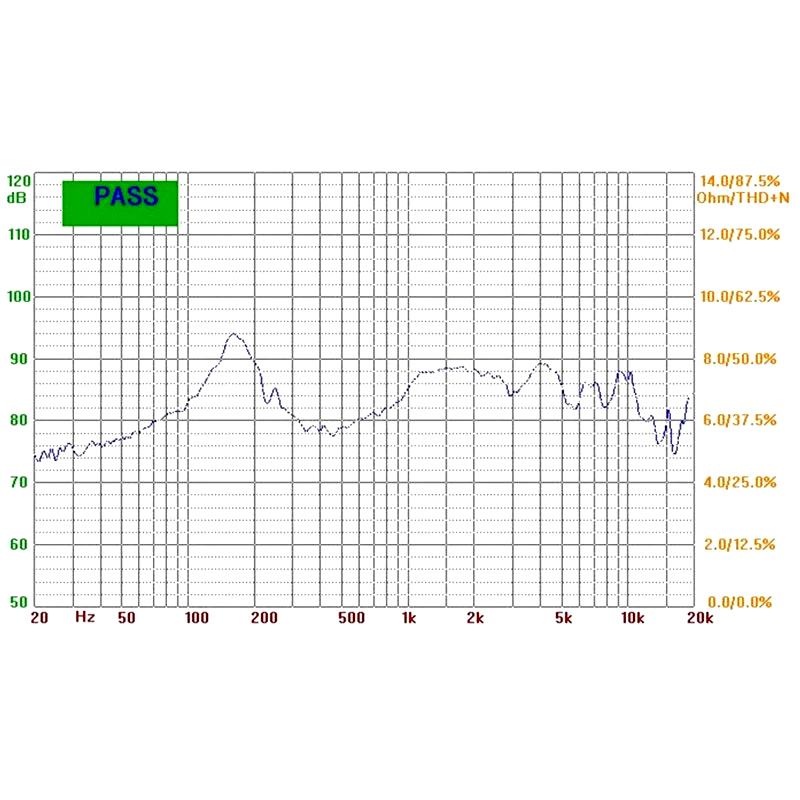

Response:Fo~20KHZ
S.P.L:84±3dB(at0.1W/0.1m, 0.5, 0.8, 1, 2 KHZ)
Magnet Size:Φ32*18*6mm
Net weight:80g±8%
