Blue Tooth Audio Speaker

Loudspeaker 52mm YD52-02-8N12.95P-R 22mm magnet bluetooth Audio Speaker Drivers

  • Loudspeaker 52mm YD52-02-8N12.95P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD52-02-8N12.95P-RDimension:Φ52*68*33.5H mmCone Material:PaperEdge:ClothNominal Power:1

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD52-02-8N12.95P-R
  • Diameter: Φ52*68*33.5H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 52mm YD52-02-8N12.95P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD52-02-8N12.95P-R

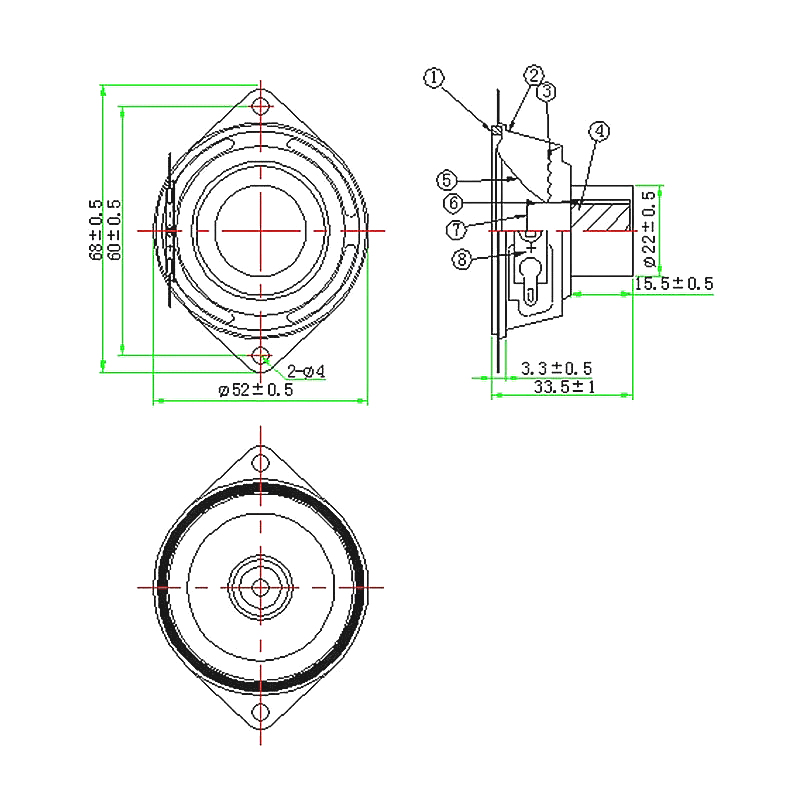

Dimension:Φ52*68*33.5H mm
Cone Material:Paper
Edge:Cloth
Nominal Power:10W
Maximum Power:15W
Impedance:8±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:400±20%Hz

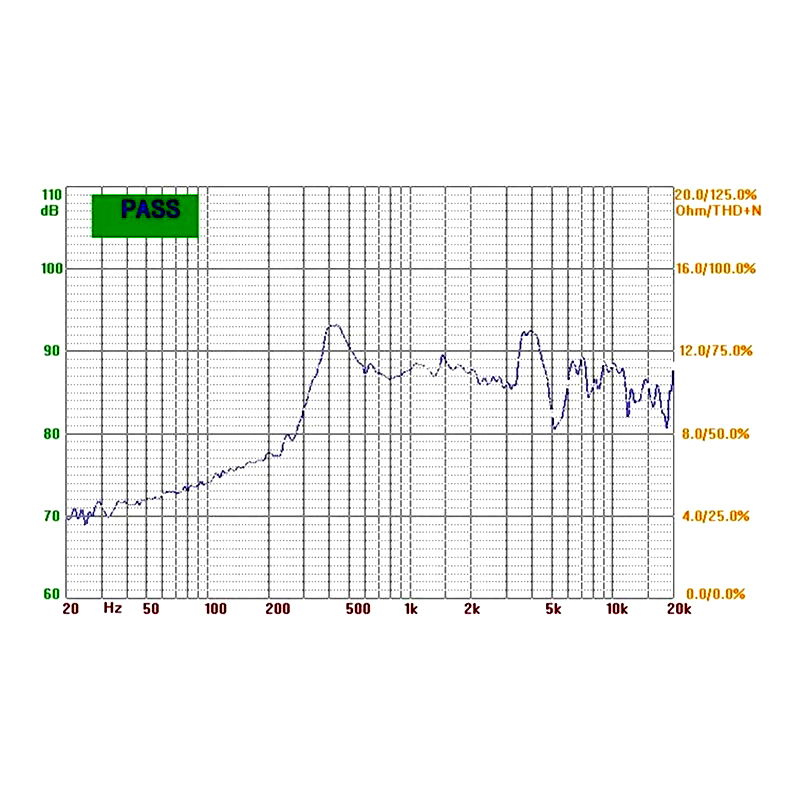

Response:Fo~20KHZ
S.P.L:86±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ12.95*15.0mm
Net weight:55g±8%
