Blue Tooth Audio Speaker

Loudspeaker 52mm YD52-03-8N15.5P-R 22mm magnet bluetooth Audio Speaker Drivers

  • Loudspeaker 52mm YD52-03-8N15.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD52-03-8N15.5P-RDimension:Φ52*24H mmCone Material:PaperEdge:PUNominal Power:5WMaximum P

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD52-03-8N15.5P-R
  • Diameter: Φ52*24H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 52mm YD52-03-8N15.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



ModelYD52-03-8N15.5P-R

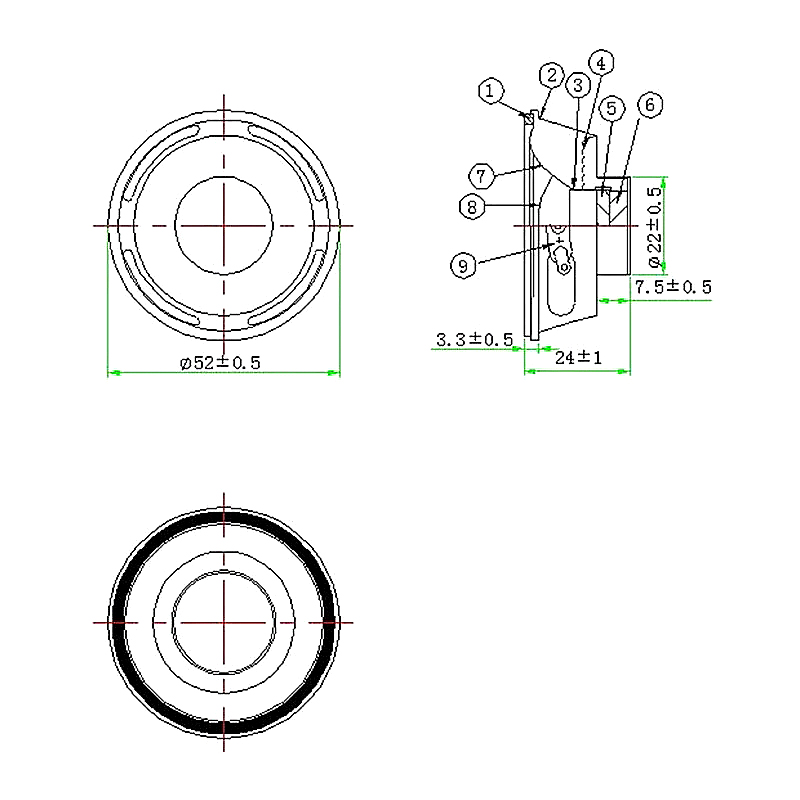

Dimension:Φ52*24H mm
Cone Material:Paper
Edge:PU
Nominal Power:5W
Maximum Power:6W
Impedance:8±15%Ω
Voice coil:Φ16.28mm KSV+Cu
Fo:230±20%Hz
Response:Fo~20KHZ
S.P.L:85±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ15.5*4.0mm
Net weight:30g±8%
