Blue Tooth Audio Speaker

Loudspeaker 36mm YD36-01-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 36mm YD36-01-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD36-01-8N12.5P-RDimension:Φ36*18H mmCone Material:PU+PaperEdge:PaperNominal Power:5WMax

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD36-01-8N12.5P-R
  • Diameter: Φ36*18H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 36mm YD36-01-8N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



ModelYD36-01-8N12.5P-R

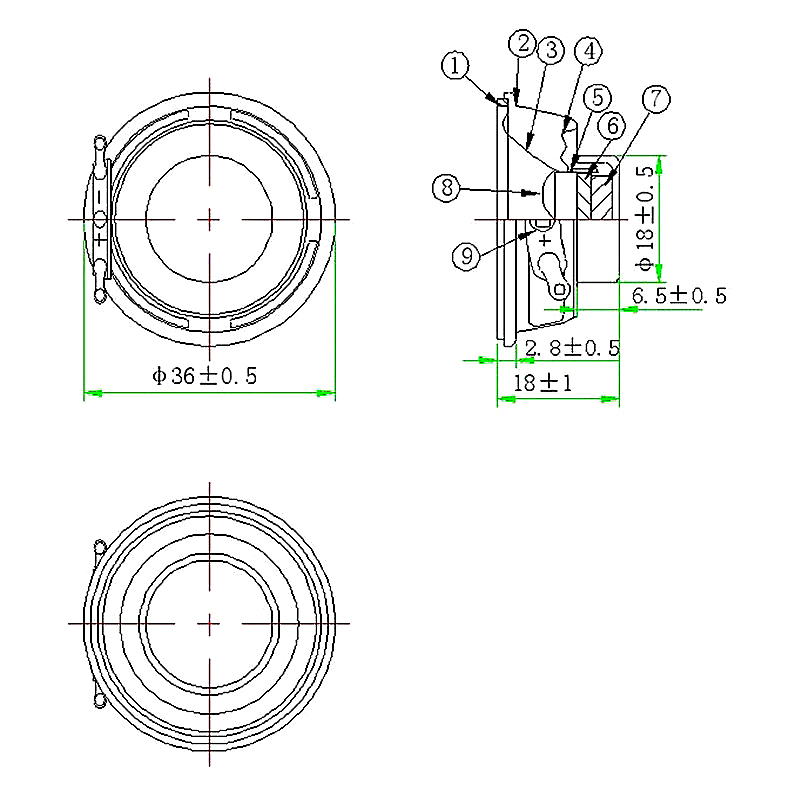

Dimension:Φ36*18H mm
Cone Material:PU+Paper
Edge:Paper
Nominal Power:5W
Maximum Power:6W
Impedance:8±15%Ω
Voice coil:Φ13.28mm  KSV+Cu
Fo:320±20%Hz

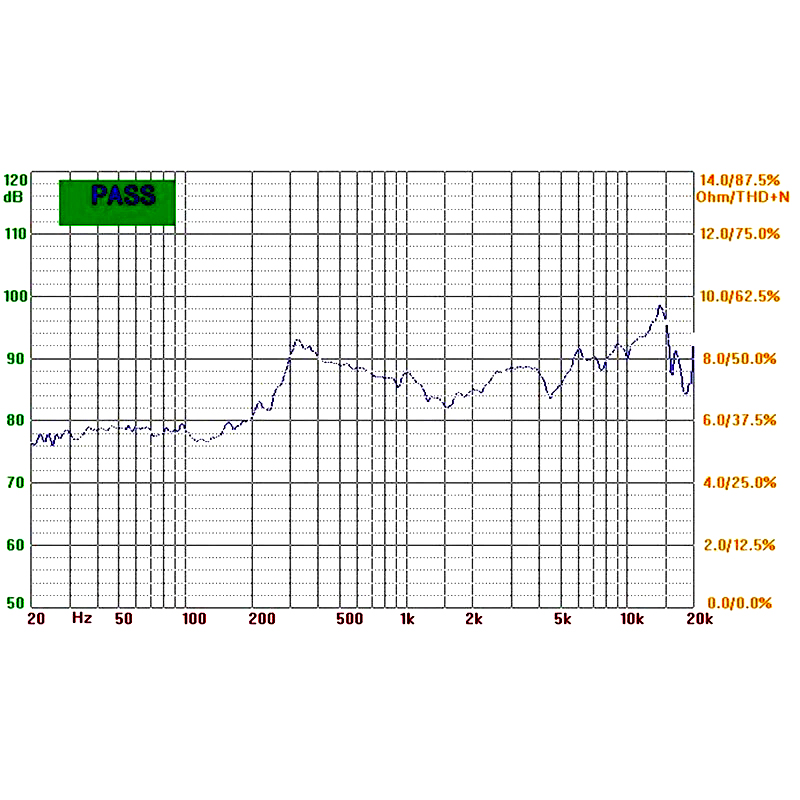

Response:Fo~20KHZ
S.P.L:87±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*3.0mm
Net weight:15g±8%
