Telephone Speaker

Loudspeaker YD66-22-8F28.5P 64mm 2.5inch Square Plastic Housing Mylar Audio Speaker Speaker Unit

  • Model YD66-22-8F28.5P Diameter: Φ66mmCone Material: PaperEdge: PaperNominal Power: 1.0w Maximum Power: 2.0w Impedance:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-22-8F28.5P
  • Diameter: Φ66mm
  • Description
  • Order

Product Description

2

                   Model                      YD66-22-8F28.5P

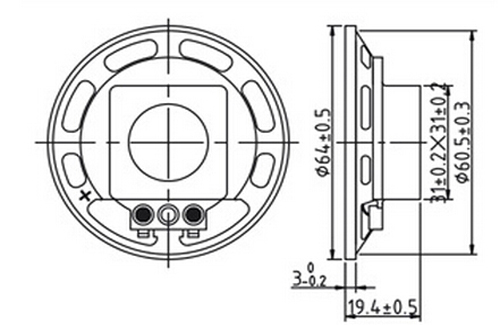

Diameter:

     Φ66mm

Cone Material:

      Paper

Edge:

      Paper

Nominal Power:

      1.0w

Maximum Power:

      2.0w

Impedance:

      8±15%Ω

Voice coil:

      Φ10.3mm

Fo:

      340±20%Hz

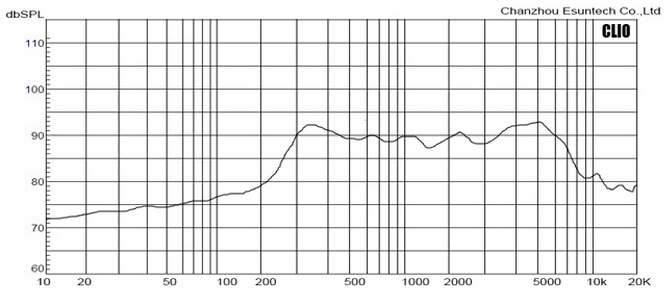

Response:

      Fo-3.5kHz

S.P.L:

      86±3dB/W/M

Magnet Size:

      Φ28.5×Φ12.5×5(Ferrite)

Net weight:

      48g

3
