Telephone Speaker

Loudspeaker 57mm YD57-34-45N12.5P-R 22mm magnet Telephone Speaker Drivers

  • Loudspeaker 57mm YD57-34-45N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co LtdModelYD57-34-45N12.5P-RDimension:57*57*19.5H mmCone Material:PaperEdge:PaperNominal Power:0.5WMaxi

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD57-34-45N12.5P-R
  • Diameter: 57*57*19.5H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 57mm YD57-34-45N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD57-34-45N12.5P-R

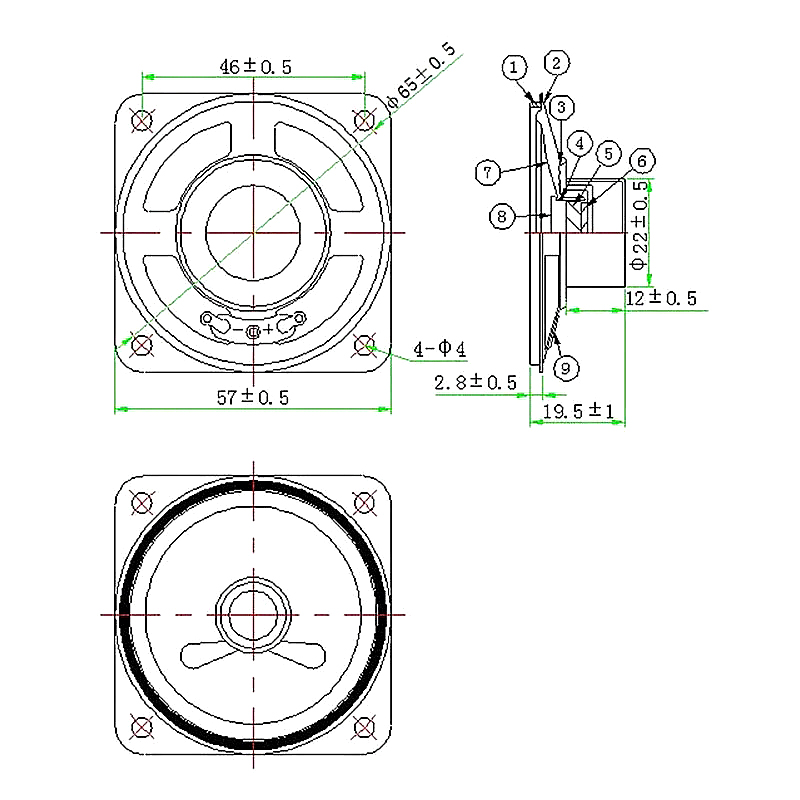

Dimension:57*57*19.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:0.5W
Maximum Power:1W
Impedance:45Ω±15%Ω
Voice coil:13.28mm PL+Cu
Fo:500±20%

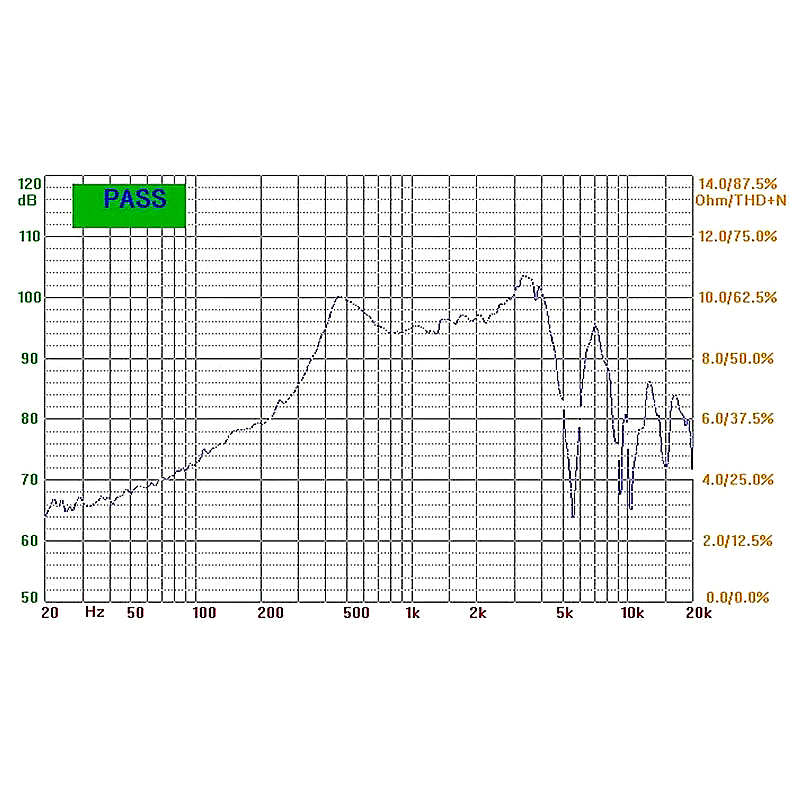

Response:Fo~5KHZ
S.P.L:95±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:35g±8%
