Telephone Speaker

Loudspeaker 50mm YD50-52-8N12.5P-R 19mm magnet shielding Min Full Range Telephone Speaker Drivers

  • Loudspeaker 50mm YD50-52-8N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-52-8N12.5P-RDimension:Φ50*12H mmCone Material:PaperEdge:PaperNominal Power:2WMaximum Powe

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-52-8N12.5P-R
  • Diameter: Φ50*12H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-52-8N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD50-52-8N12.5P-R

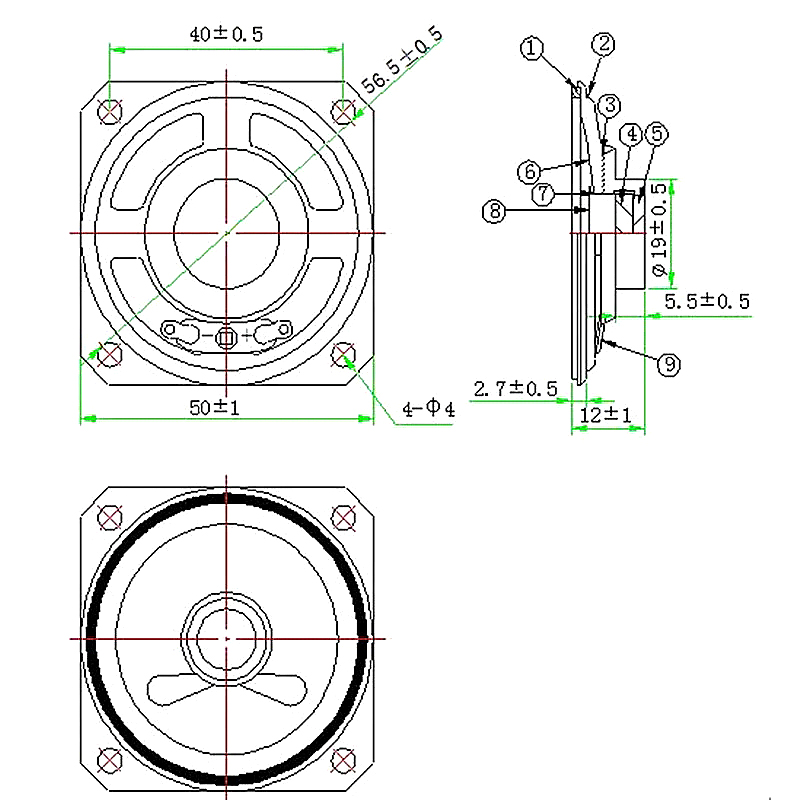

Dimension:Φ50*12H mm
Cone Material:Paper
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8±15%Ω
Voice coil:Φ13.28mm   PL+Cu
Fo:500±20%Hz

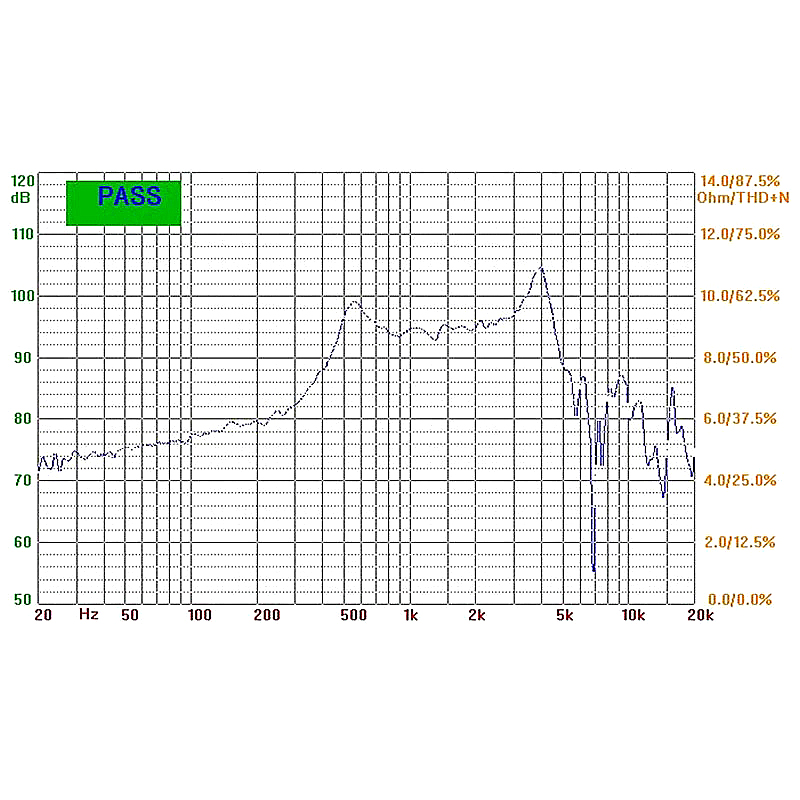

Response:Fo500~5KHZ
S.P.L:93±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ12.5*2mm
Net weight:12g±8%
