Telephone Speaker

Loudspeaker 50mm YD50-54-4F32P-R4 OHM Min Full Range Telephone Speaker Drivers

  • Loudspeaker 50mm YD50-54-4F32P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-54-4F32P-RDimension:Φ50*50*17H mmCone Material:PaperEdge:PaperNominal Power:3WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-54-4F32P-R
  • Diameter: Φ50*50*17H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-54-4F32P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co Ltd


3-webp



ModelYD50-54-4F32P-R

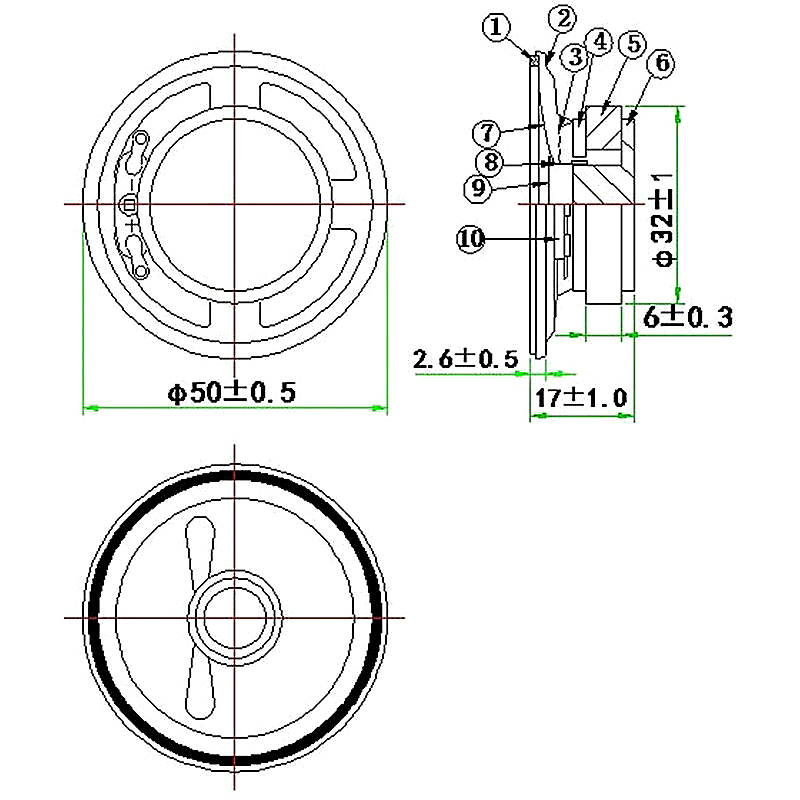

Dimension:Φ50*50*17H mm
Cone Material:Paper
Edge:Paper
Nominal Power:3W
Maximum Power:4W
Impedance:4±15%Ω
Voice coil:Φ13.28mmPL+Cu
Fo:500±20%Hz

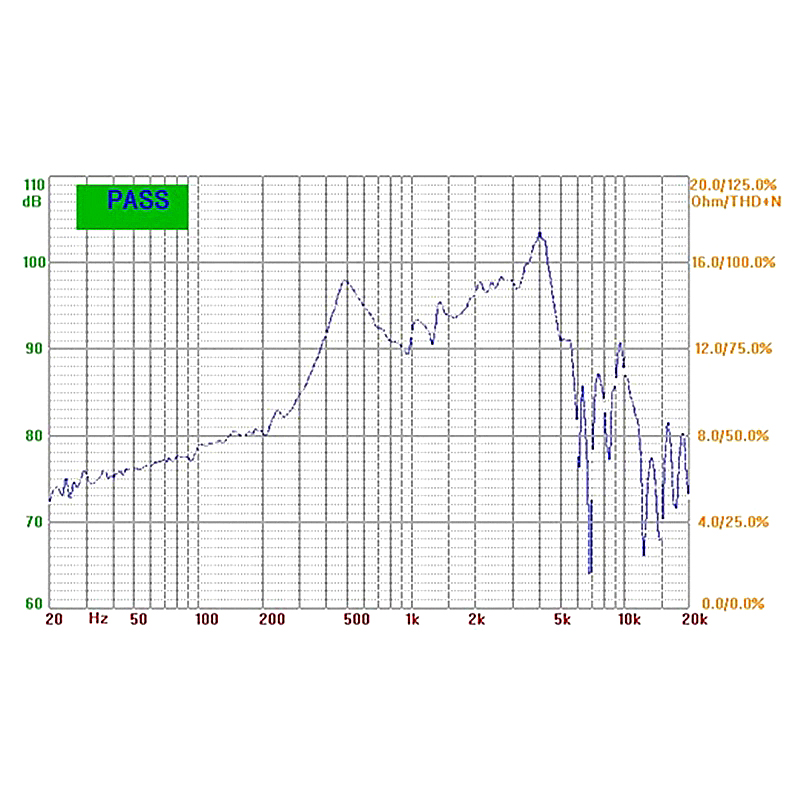

Response:500-5KHZ
S.P.L:91±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ32*18*6mm
Net weight:50g±8%
