Telephone Speaker

Loudspeaker 50mm YD50-48-4N12.5P-R 2W 3W 18mm shielding magnet cover Min Full Range Telephone Speaker Drivers

  • Loudspeaker 50mm YD50-48-4N12.5P-R 2W 3W 18mm shielding magnet cover Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-48-4N12.5P-RDimension:Φ50*11.5H mmCone Material:PaperEd

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-48-4N12.5P-R
  • Diameter: Φ50*11.5H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-48-4N12.5P-R 2W 3W 18mm shielding magnet cover Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD50-48-4N12.5P-R

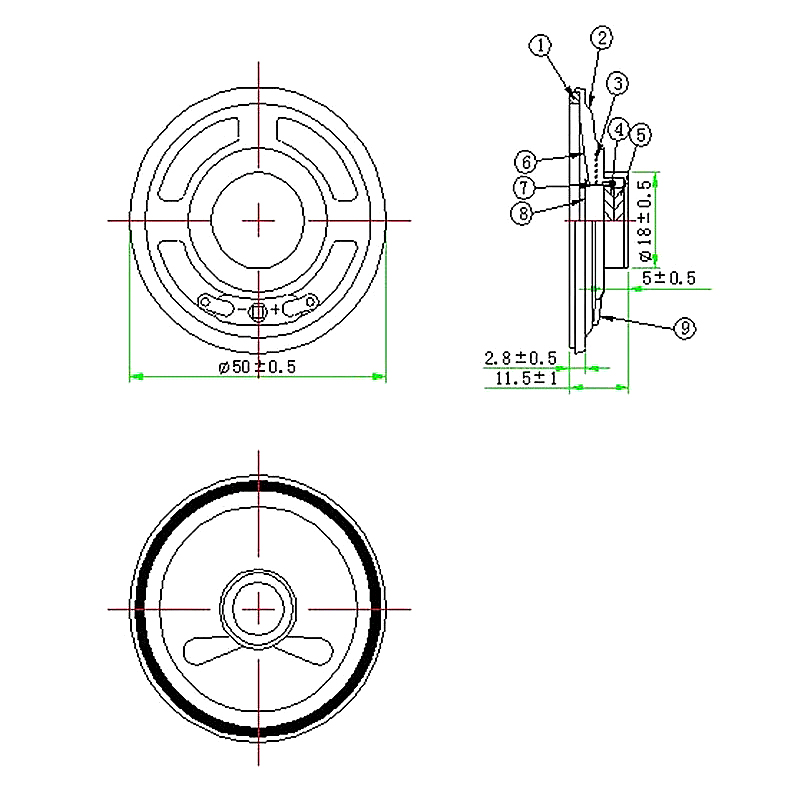

Dimension:Φ50*11.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:4±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:500±20%Hz
Response:Fo~5KHZ
S.P.L:91±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ12.5*2mm
Net weight:17g±8%
