Telephone Speaker

Loudspeaker 45mm YD45-08-16N12.5P-R Min Full Range Telephone Speaker Drivers

  • Loudspeaker 45mm YD45-08-16N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co LtdModelYD45-08-16N12.5P-RDimension:Φ45*17.5H mmCone Material:PaperEdge:PaperNominal Power:0.3WMaximu

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD45-08-16N12.5P-R
  • Diameter: Φ45*17.5H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 45mm YD45-08-16N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD45-08-16N12.5P-R

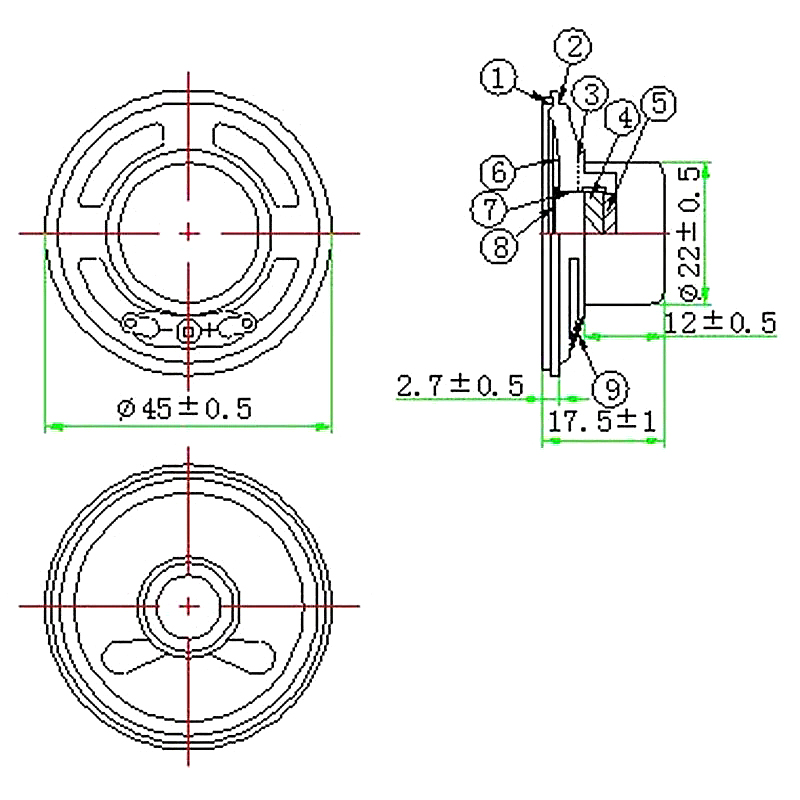

Dimension:Φ45*17.5H mm
Cone Material:Paper
Edge:Paper
Nominal Power:0.3W
Maximum Power:0.5W
Impedance:16±15%Ω
Voice coil:Φ16.28mm PL+Cu
Fo:520±20%Hz

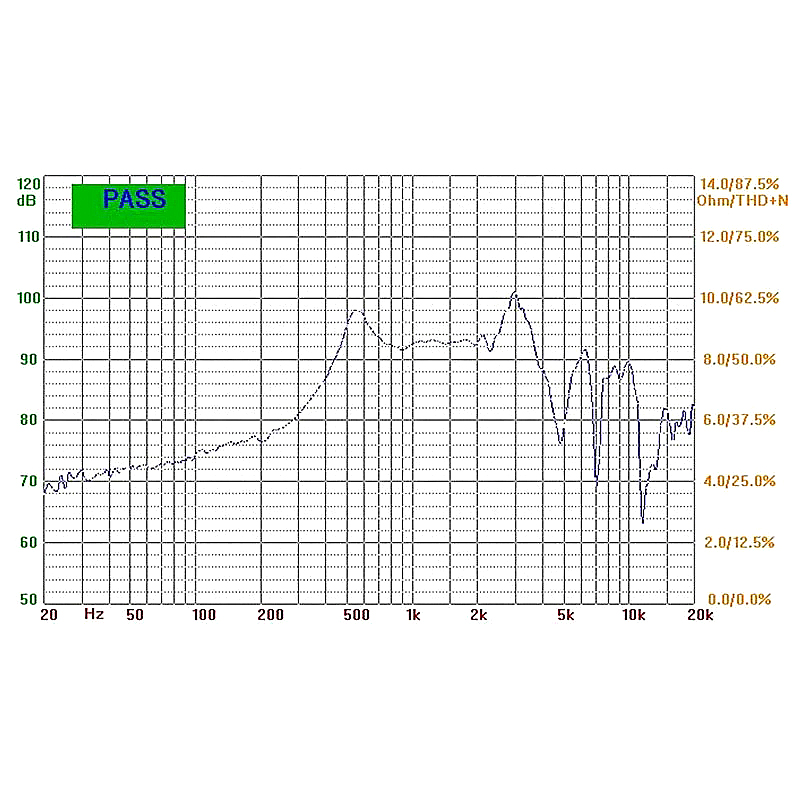

Response:Fo~5KHZ
S.P.L:93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:30g±8%
