Product Description

Loudspeaker 40mm YD40-21-8N12.5P-R Min Full Range Telephone Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD40-21-8N12.5P-R

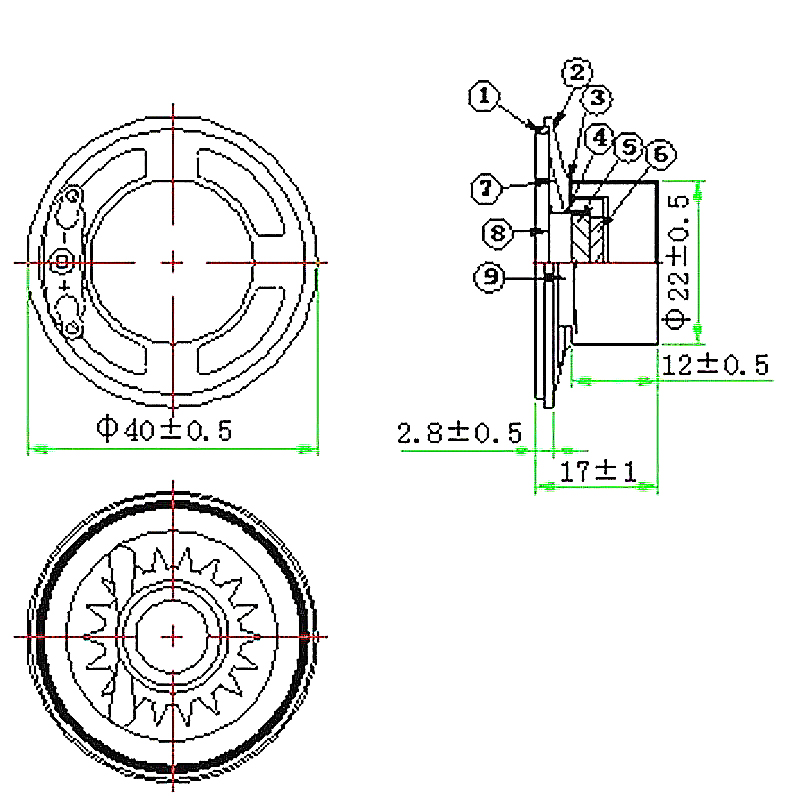

Dimension:Φ40*17H mm
Cone Material:Paper
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:8±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:850±20%Hz

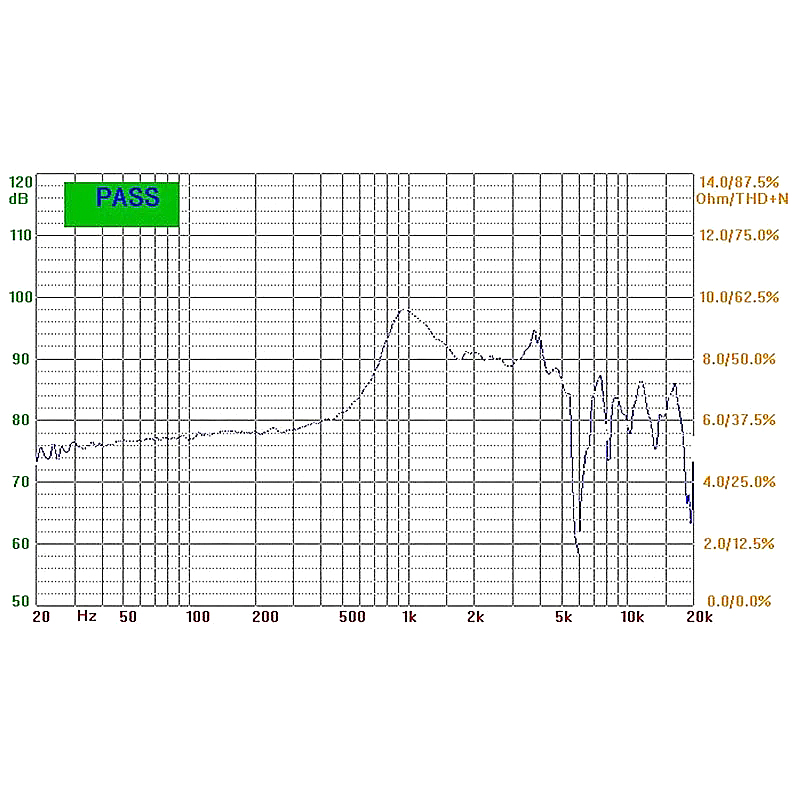

Response:Fo~5KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*2.0mm
Net weight:28g±8%
