TV Speaker

Loudspeaker YDP613-8A-8F50U-R 57mm*117mm 613 TV Speaker Drivers, Tv Speaker Parts

  • Model YDP613-8A-8F50U-RDiameter:57126mmCone Material:PaperEdge:FoamNominal Power:15WMaximum Power:20WImpedance:815%ΩFo:13020%HzResponse:Fo-18kHzS.P.L:903dB/W

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YDP613-8A-8F50U-R
  • Diameter: 57×126mm
  • Description
  • Order

Product Description

2

                           Model                 YDP613-8A-8F50U-R

Diameter:

57×126mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

15W

Maximum Power:

20W

Impedance:

8±15%Ω

Fo:

130±20%Hz

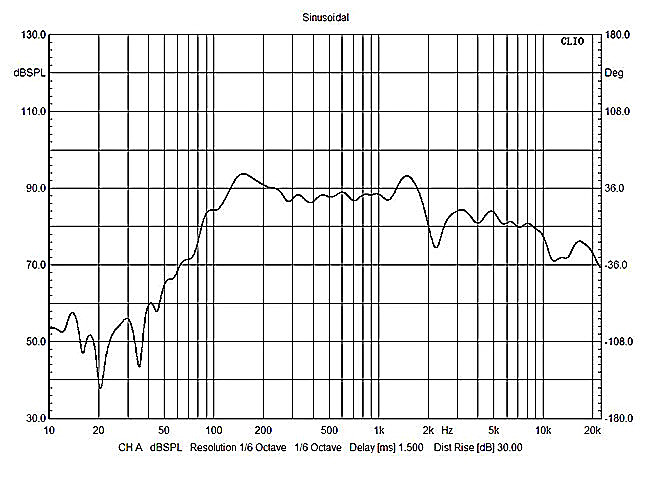

Response:

Fo-18kHz

S.P.L:

90±3dB/W/M

Magnet Size:

Φ50x24X10(Ferrite)

3
