TV Speaker

Loudspeaker 154mmx45mm YD513-2-8F32CT Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 45*154mm YD513-2-8F32CT Min Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD513-2-8F32CTDimension:154*45mmCone Material:PaperEdge:Foam/ClothNominal Power:5WMaximum Po

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD513-2-8F32CT
  • Diameter: 154*45mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 45*154mm YD513-2-8F32CT Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd






2

ModelYD513-2-8F32CT

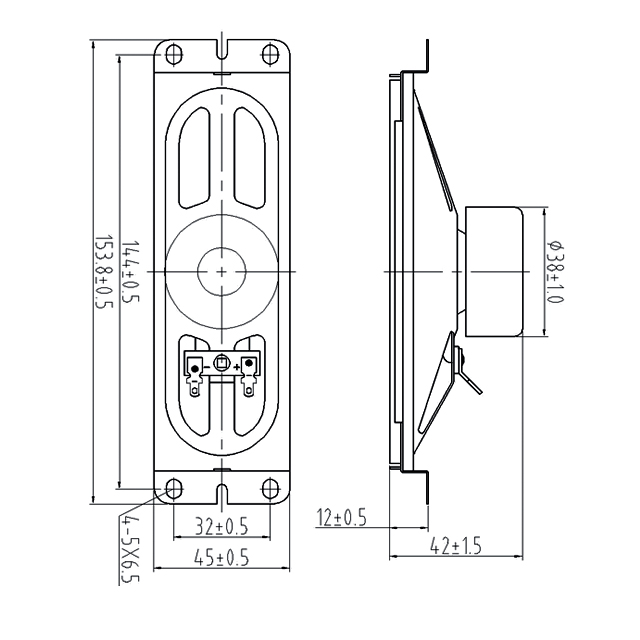

Dimension:154*45mm
Cone Material:Paper
Edge:Foam/Cloth
Nominal Power:5W
Maximum Power:10W
Impedance:8±15%Ω
Fo:220±20%Hz

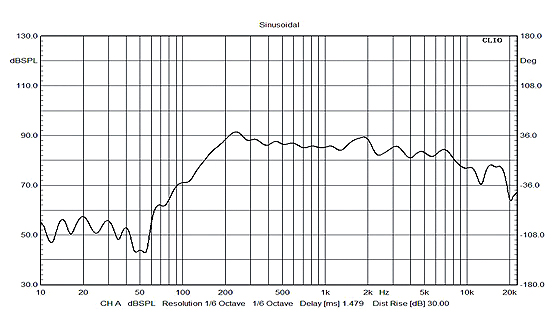

Response:Fo~10KHZ
S.P.L:88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40×19×8(Ferrite)Φ32×18×6(Ferrite)
Net weight:111g±8%

3
