TV Speaker

Loudspeaker 128mmx78mm YD813-01-8F40CT Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 128mm*78mm YD813-01-8F40C Min Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD813-01-8F40CDimension:128*77mmCone Material:PaperEdge:Foam/ClothNominal Power:10WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 128mm*78mm YD813-01-8F40C Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd




2

ModelYD813-01-8F40C

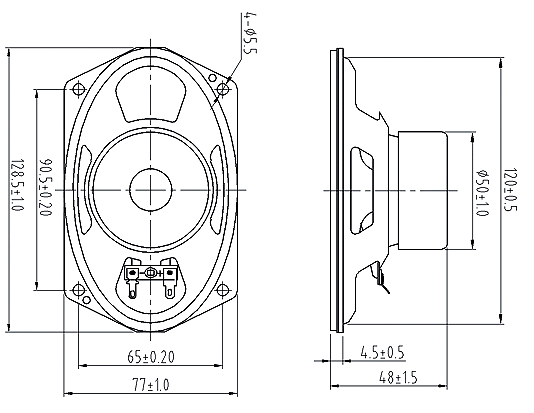

Dimension:128*77mm
Cone Material:Paper
Edge:Foam/Cloth
Nominal Power:10W
Maximum Power:15W
Impedance:8±15%Ω
Fo:200±20%Hz

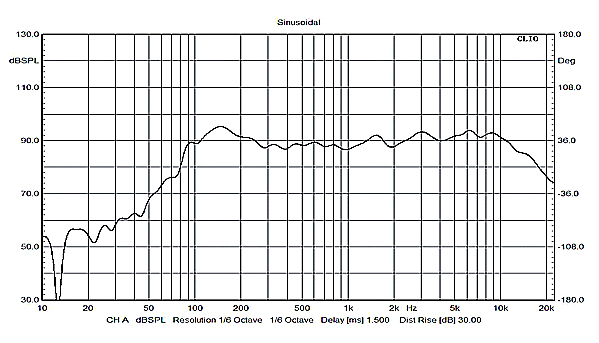

Response:Fo~10KHZ
S.P.L:88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40×19×8(Ferrite)Φ32×18×6(Ferrite)
Net weight:180g±8%

3
