TV Speaker

Loudspeaker 128mm*78mm YD813-02-8F45P-R Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 128mm*78mm YD813-02-8F45P-R Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD813-02-8F45P-RDimension:12877mmCone Material:PaperEdge:ClothNominal Power:10WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD813-02-8F45P-R
  • Diameter: 128×77mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 128mm*78mm YD813-02-8F45P-R Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd





2

ModelYD813-02-8F45P-R

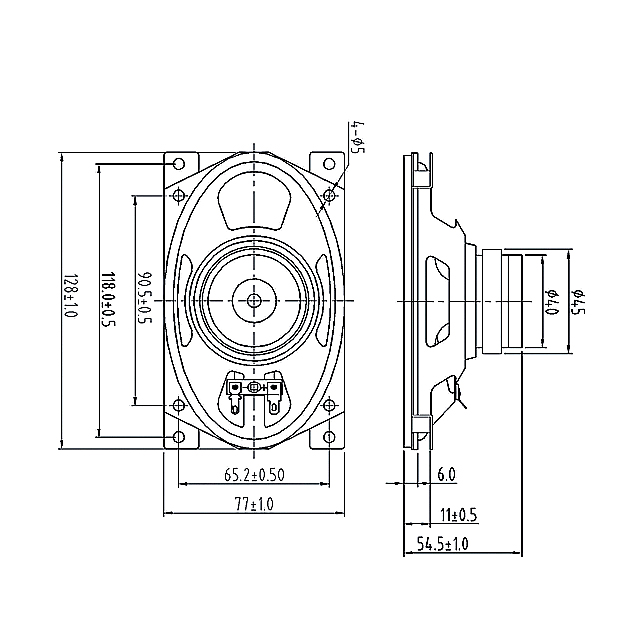

Dimension:128×77mm
Cone Material:Paper
Edge:Cloth
Nominal Power:10W
Maximum Power:15W
Impedance:8±15%Ω
Fo:110±20%Hz

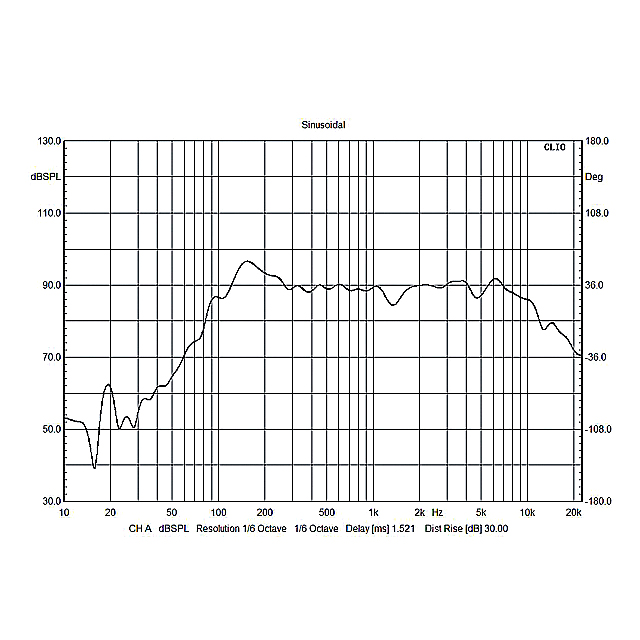

Response:Fo~20KHZ
S.P.L:90±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ45x19X8(Ferrite)
Φ40x19X6(Ferrite)

3
