TV Speaker

Loudspeaker 58mmx120mm YD612-01-4F40P-R Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 120*58mm YD612-01-4F40P-R Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD612-01-4F40P-RDimension:Φ58*120*45H mmCone Material:PaperEdge:RubberNominal Power:10WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD612-01-4F40P-R
  • Diameter: Φ58*120*45H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 120*58mm YD612-01-4F40P-R Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd







ModelYD612-01-4F40P-R

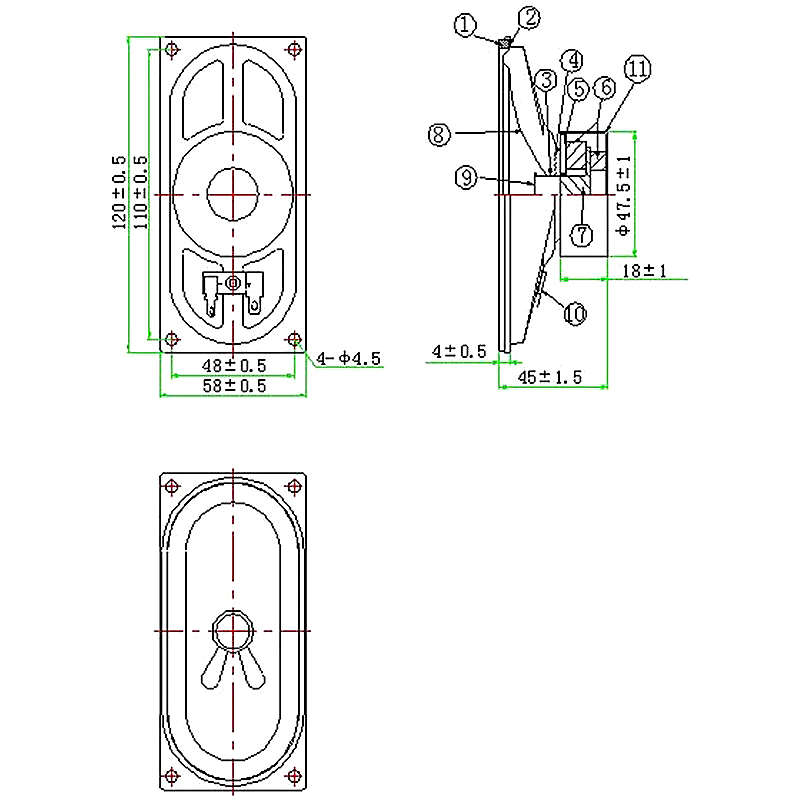

Dimension:Φ58*120*45H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:12W
Impedance:4±15%Ω
Voice coil:Φ14.28mm KSV+Cu
Fo:140±20%Hz

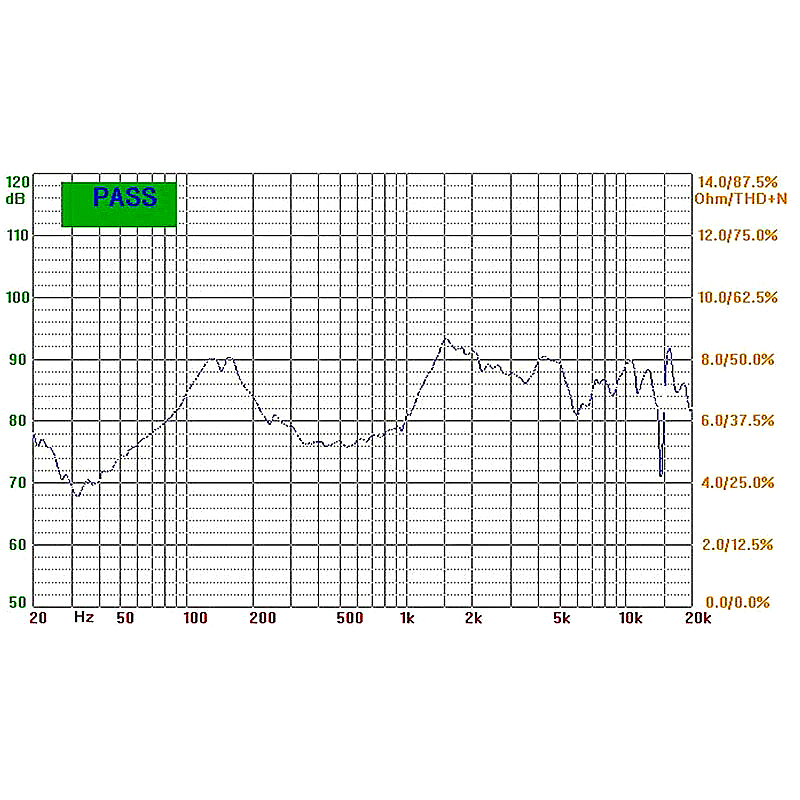

Response:Fo~20KHZ
S.P.L:81±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ40*19*8 mm /32*18*6mm Y25
Net weight:170g±8%
