TV Speaker

Loudspeaker 57mm*126mm YD613-8-8F40UT Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 57mm*126mm YD613-8-8F40UT Min Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD613-8-8F40UTDimension:57126mmCone Material:PaperEdge:Foam/ClothNominal Power:10WMaximum

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD613-8-8F40UT
  • Diameter: 57×126mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 57mm*126mm YD613-8-8F40UT Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd




2

ModelYD613-8-8F40UT

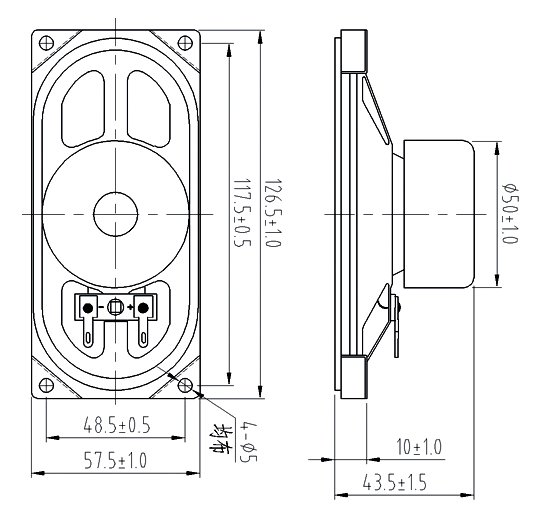

Dimension:57×126mm
Cone Material:Paper
Edge:Foam/Cloth
Nominal Power:10W
Maximum Power:15W
Impedance:8±15%Ω
Fo:200±20%Hz
Response:Fo~10KHZ
S.P.L:88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40×19×8(Ferrite)Φ32×18×6(Ferrite)
Net weight:178g±8%

3
