TV Speaker

Loudspeaker 57x126mm YD613-36-8F50P-R Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 57mm*126mm YD613-36-8F50P-R Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD613-36-8F50P-RDimension:57126mmCone Material:PaperEdge:FoamNominal Power:15WMaximum Power:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD613-36-8F50P-R
  • Diameter: 57×126mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 57mm*126mm YD613-36-8F50P-R Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd





2

ModelYD613-36-8F50P-R

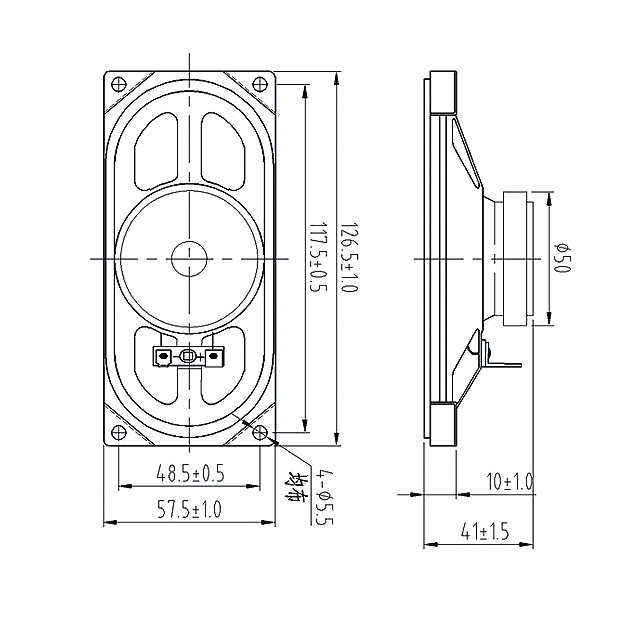

Dimension:57×126mm
Cone Material:Paper
Edge:Foam
Nominal Power:15W
Maximum Power:20W
Impedance:8±15%Ω
Fo:130±20%Hz

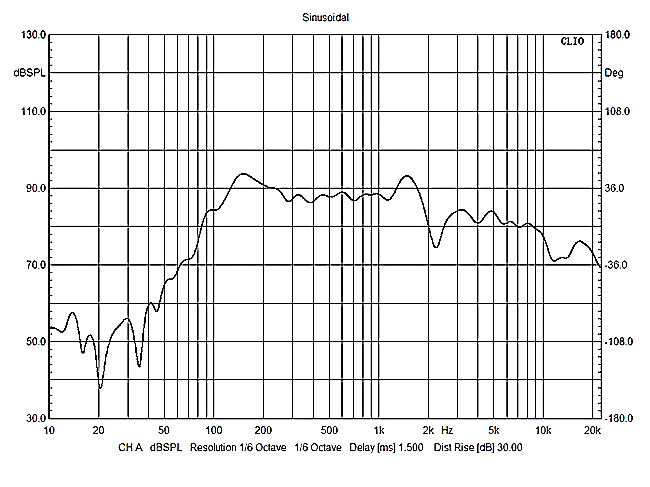

Response:Fo~18KHZ
S.P.L:90±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ50x24X10(Ferrite)

3
