TV Speaker

Loudspeaker 50*120mm YD512-01-8F45P-R Min Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 51mm*120mm YD512-01-8F45P-R Min Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD512-01-8F45P-RDimension:51*120*36H mmCone Material:PaperEdge:RubberNominal Power:6WMax

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD512-01-8F45P-R
  • Diameter: 51*120*36H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 51mm*120mm YD512-01-8F45P-R Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD512-01-8F45P-R

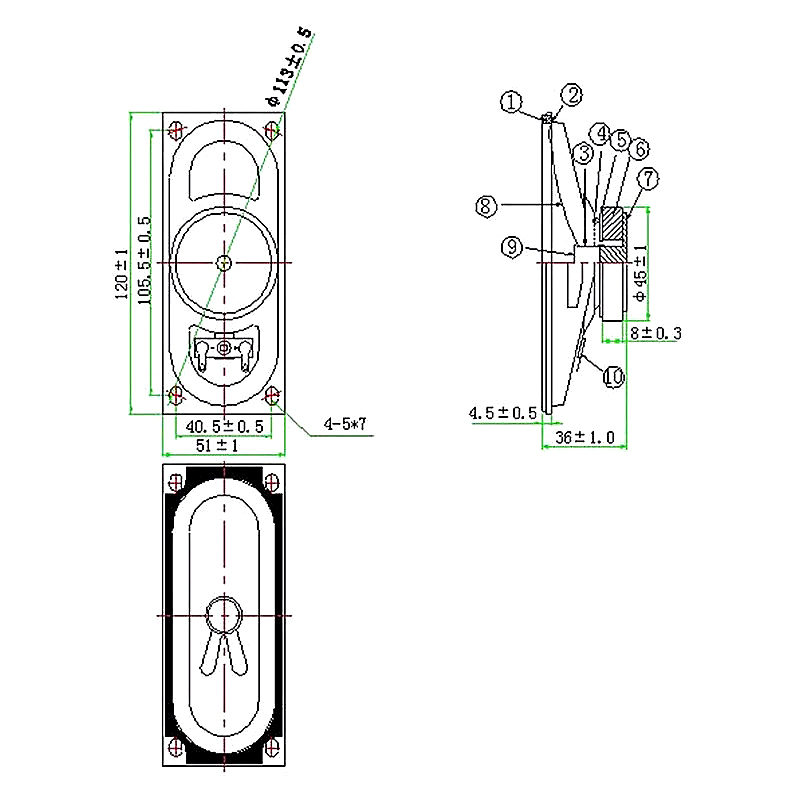

Dimension:51*120*36H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:6W
Maximum Power:8W
Impedance:8±15%Ω
Voice coil:Φ13.28mm  KSV+Cu
Fo:150±20%Hz

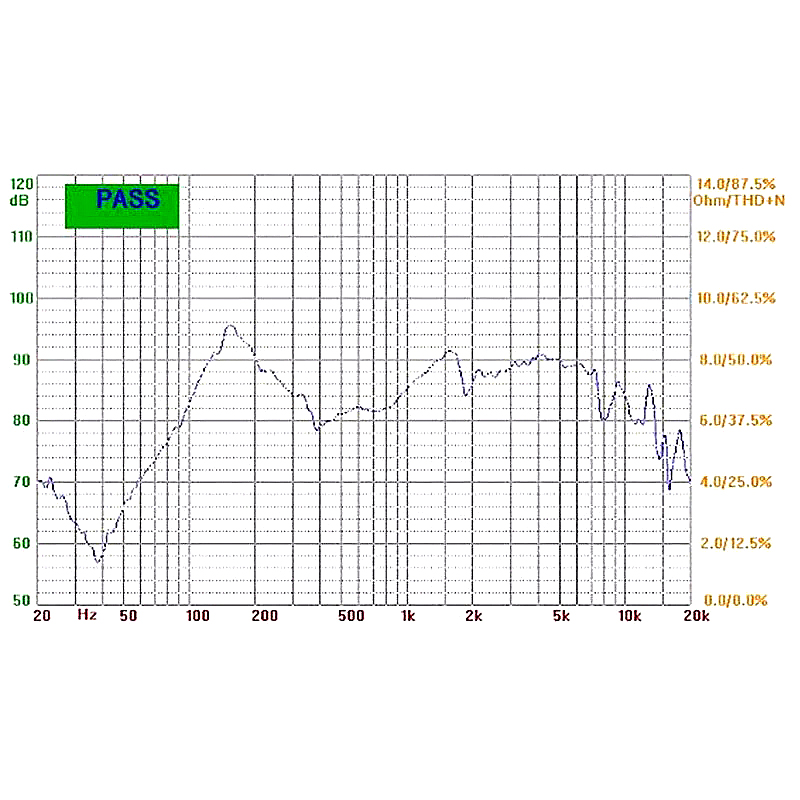

Response:Fo~20KHZ
S.P.L:84±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ45*19*8mm
Net weight:130g±8%
