TV Speaker

Loudspeaker 50mmX90mm YD5090-59-8N12.5P-R 18mm magnet Full Range TV speaker laptop speaker Drivers

  • Loudspeaker 90*50mm YD5090-59-8N12.5P-R Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD5090-59-8N12.5P-R Dimension:50*90*26H mmCone Material:PaperEdge:Cloth Nominal Power:5WMax

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD5090-59-8N12.5P-R
  • Diameter: 50*90*26H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 90*50mm YD5090-59-8N12.5P-R  Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd





未标题-1

ModelYD5090-59-8N12.5P-R

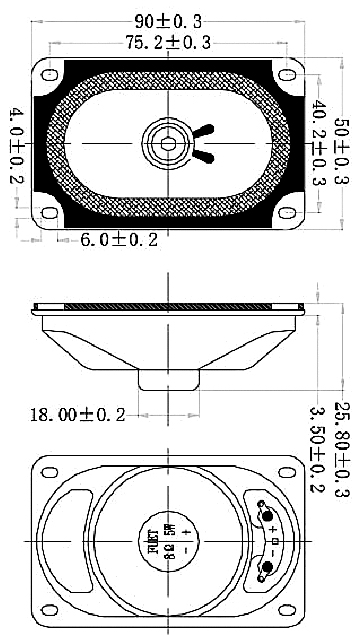

Dimension:50*90*26H mm
Cone Material:Paper
Edge:Cloth
Nominal Power:5W
Maximum Power:8W
Impedance:8±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:180±20%Hz
Response:Fo~15KHZ
S.P.L:92±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ12.5*3mm
Net weight:49g±8%


微信图片_20211021111647
