TV Speaker

Loudspeaker 90x50mm YD5090-58-8F40M-R water proof speaker laptop speaker Drivers

  • Loudspeaker 50mm YD5090-58-8F40M-R Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD5090-58-8F40M-RDimension:50*90*33H mmCone Material:PaperEdge:PETNominal Power:5WMaximum Power:8

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD5090-58-8F40M-R
  • Diameter: 50*90*33H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD5090-58-8F40M-R Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD5090-58-8F40M-R

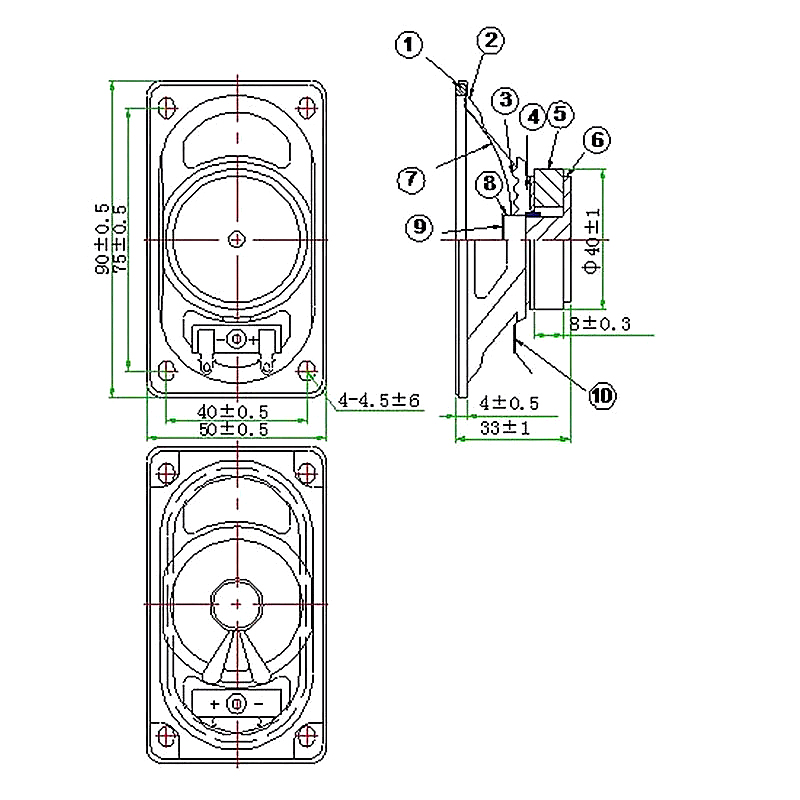

Dimension:50*90*33H mm
Cone Material:Paper
Edge:PET
Nominal Power:5W
Maximum Power:8W
Impedance:8±15%Ω
Voice coil:Φ13.28mm  KSV+Cu
Fo:350±20%Hz

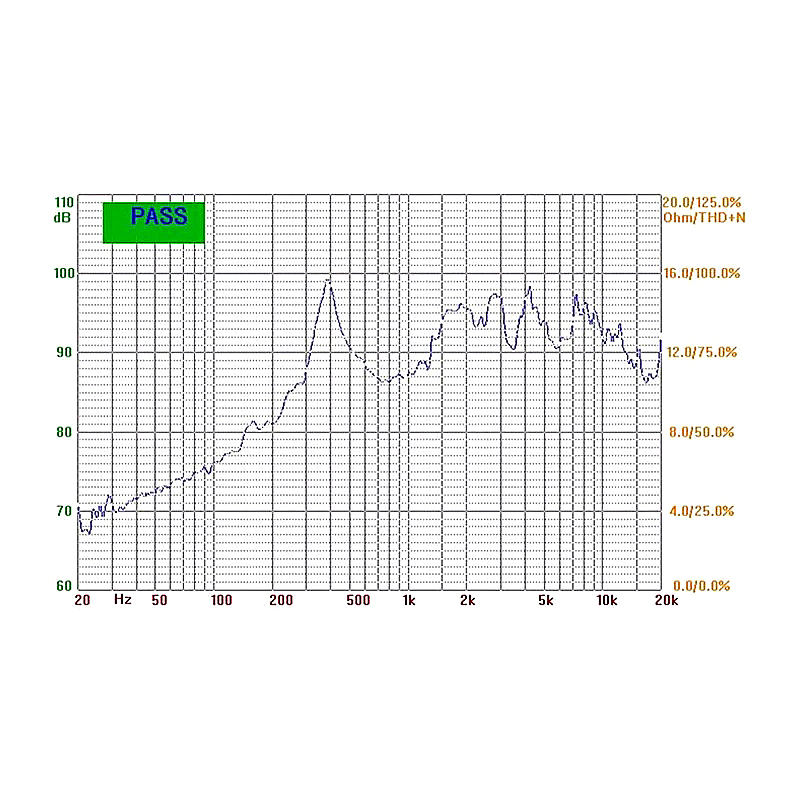

Response:Fo~20KHZ
S.P.L:84±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ40*19*8mm
Net weight:95g±8%
