TV Speaker

Loudspeaker 30*70mm YD3070-03-4F32P-R Min Full Range TV speaker laptop speaker

  • Loudspeaker 30*70mm YD3070-03-4F32P-R Min Full Range TV Laptop Speaker Drivers-Changzhou Esuntech Co LtdModelYD3070-03-4F32P-RDimension:Φ30*70*24H mmCone Material:PaperEdge:ClothNominal Power:3WMaxim

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD3070-03-4F32P-R
  • Diameter: Φ30*70*24H mm
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 30*70mm YD3070-03-4F32P-R Min Full Range TV  Laptop Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD3070-03-4F32P-R

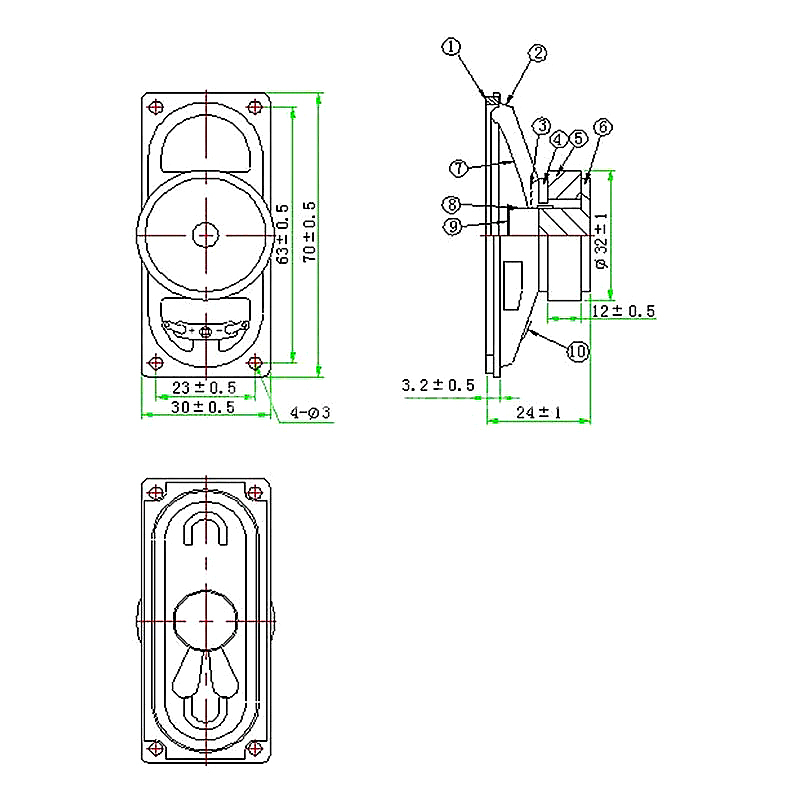

Dimension:Φ30*70*24H mm
Cone Material:Paper
Edge:Cloth
Nominal Power:3W
Maximum Power:4W
Impedance:4±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:500±20%Hz
Response:Fo~10KHZ
S.P.L:90±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*8mm
Net weight:60g±8%
