Loudspeaker 40mm YD40-14-4N15.5P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 40mm YD40-14-4N15.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD40-14-4N15.5P-RDimension:Φ40*20H mmCone Material:PU+PaperEdge:PUNominal Power:3WMaximu

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD40-14-4N15.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 40mm YD40-14-4N15.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



ModelYD40-14-4N15.5P-R

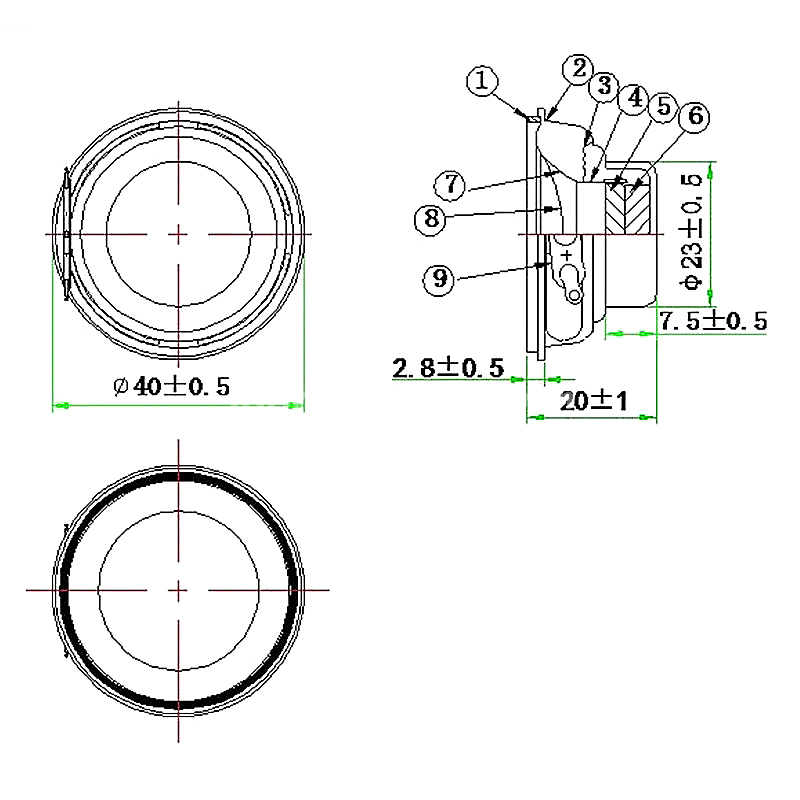

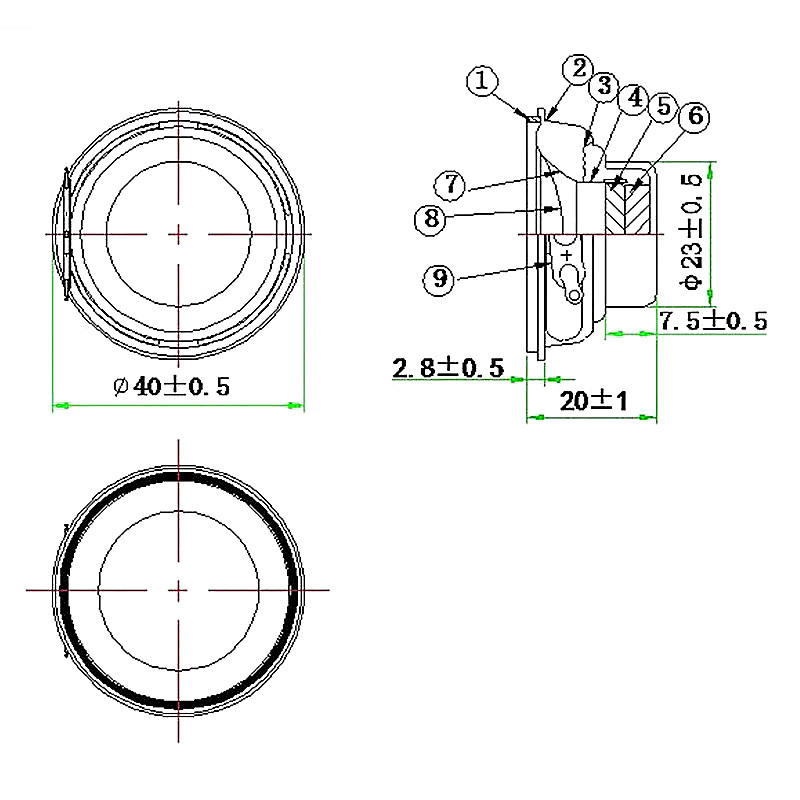

Dimension:Φ40*20H mm
Cone Material:PU+Paper
Edge:PU
Nominal Power:3W
Maximum Power:5W
Impedance:4±15%Ω
Voice coil:Φ16.28mm KSV+Cu
Fo:180±20%Hz

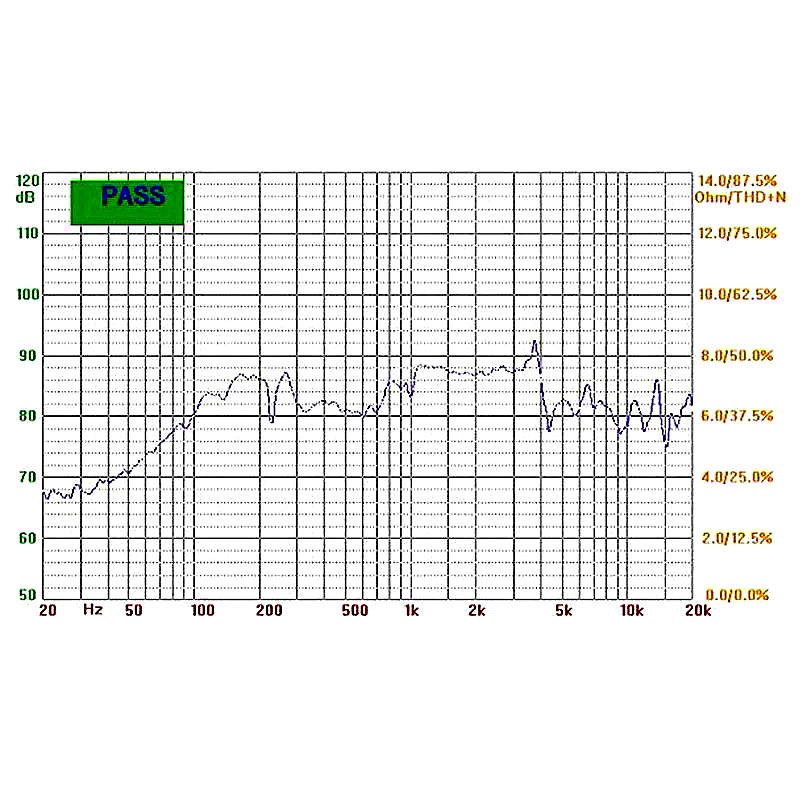

Response:Fo~20KHZ
S.P.L:85±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ15.5*4.0mm
Net weight:25g±8%
