Loudspeaker

Loudspeaker YD66-5-8N12.5P 2.5 Inch 18mm magnet Square Internal Magnet Audio Speaker Drive Full Range Paper Cone 66mm

  • Model YD66-5-8N12.5PDiameter:66*66mmCone Material: PaperEdge:PaperNominal Power:0.5wMaximum Power:1.0wImpedance: 815%ΩVoice coil:Φ13.3mmFo:40020%HzRespons

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-5-8N12.5P
  • PDF
  • Description
  • Order

Product Description

2

                          Model                    YD66-5-8N12.5P

Diameter:

66*66mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.5w

Maximum Power:

1.0w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

400±20%Hz

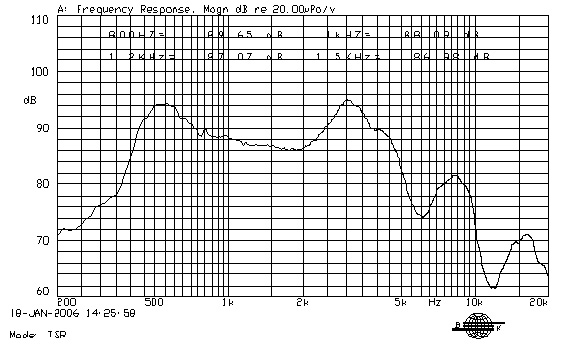

Response:

Fo-10kHz

S.P.L:

87±3dB/W/M

Magnet Size:

Φ12.5*2.0(NdFeB)

Net weight:

  25g

3
