Loudspeaker YD77-11-8F45U 3 Inch 77mm 4/8/16/32ohm Full Range Round Loudspeaker Driver Raw Speaker unit

  • Model YD77-11-8F45UDiameter:Φ77mmCone Material:PaperEdge:FoamNominal Power:3.0wMaximum Power:5.0wImpedance:815%ΩVoice coil:Φ13.3mmFo:18020%HzResponse:Fo-10k

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-11-8F45U
  • PDF
  • Description
  • Order

Product Description

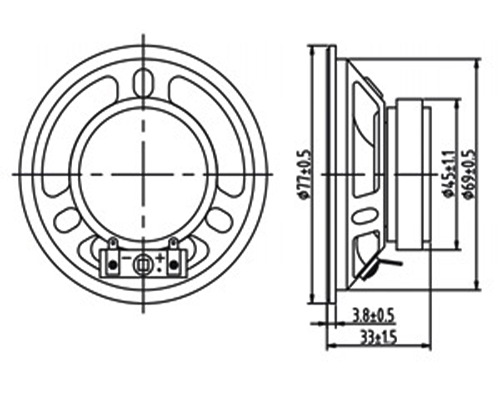

2

                          Model                   YD77-11-8F45U

Diameter:

Φ77mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

3.0w

Maximum Power:

5.0w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

180±20%Hz

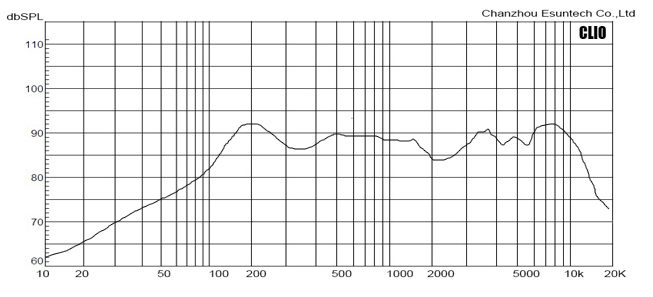

Response:

Fo-10kHz

S.P.L:

84±3dB/W/M

Magnet Size:

Φ45×Φ22×8(Ferrite)

Net weight:

129g

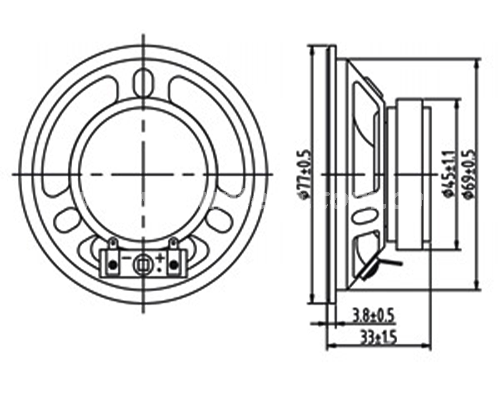

3
