Product Description

Loudspeaker 102mm YD102-18-4F55P-R Min Full Range car Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD102-18-4F55P-R

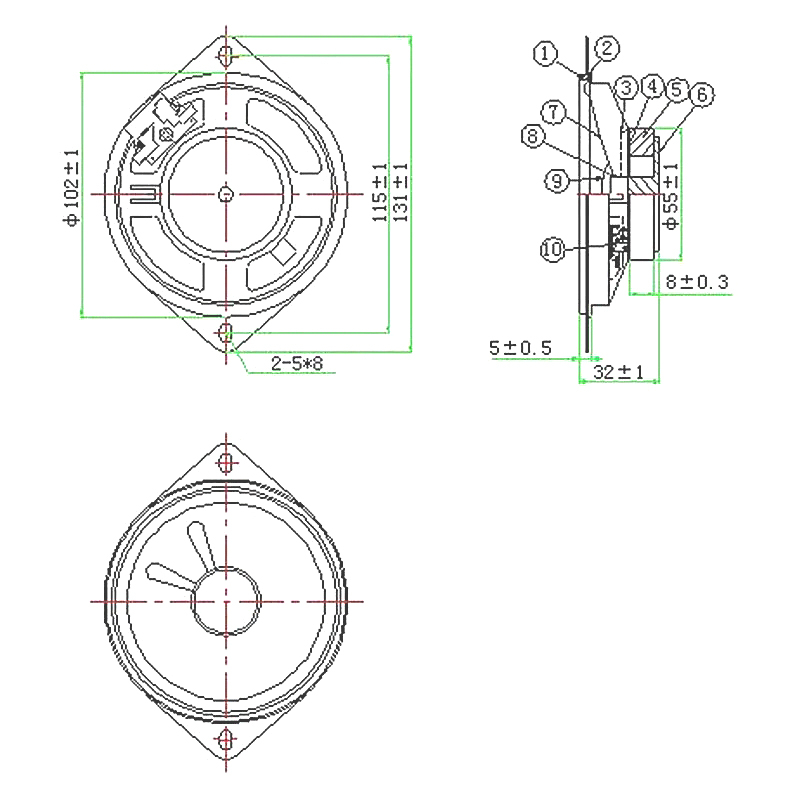

Dimension:Φ102*102*32H mm
Cone Material:Paper
Edge:Foam
Nominal Power:5W
Maximum Power:10W
Impedance:4±15%Ω
Voice coil:Φ14.28mm ASV+Cu
Fo:140±20%Hz
Response:Fo~10KHZ
S.P.L:91±3dB( AT 0.1W/0.1M,AT 0.6,0.8,1.0,1.2 KHz )
Magnet Size:Φ55*32*10mm
Net weight:176g±8%
