Loudspeaker YD300-50-12F126C 12 Inch Midrange Stereo Audio Speaker, Mid Range Loudspeaker Drivers

  • Model YD300-50-12F126CDiameter:Φ304mmCone Material:PaperEdge:ClothNominal Power:50wMaximum Power:100wImpedance:1215%ΩVoice coil:Φ50.8mmFo:3520%HzResponse:Fo

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD300-50-12F126C
  • PDF
  • Description
  • Order

Product Description

2

                           Model                  YD300-50-12F126C

Diameter:

Φ304mm

Cone Material:

Paper

Edge:

Cloth

Nominal Power:

50w

Maximum Power:

100w

Impedance:

12±15%Ω

Voice coil:

Φ50.8mm

Fo:

35±20%Hz

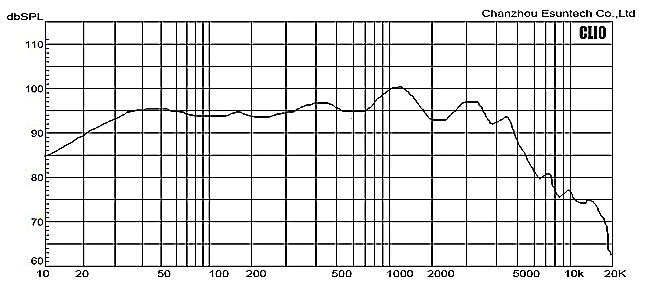

Response:

Fo-1kHz

S.P.L:

95±3dB/1W/0.5M

Magnet Size:

Φ126×62×20(Ferrite)

Net weight:

2730g

3
