Loudspeaker 40mm YD40-13-4N12.5P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 40mm YD40-13-4N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD40-13-4N12.5P-RDimension:Φ40*21H mmCone Material:PU+PaperEdge:PaperNominal Power:3WMax

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD40-13-4N12.5P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 40mm YD40-13-4N12.5P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd




ModelYD40-13-4N12.5P-R

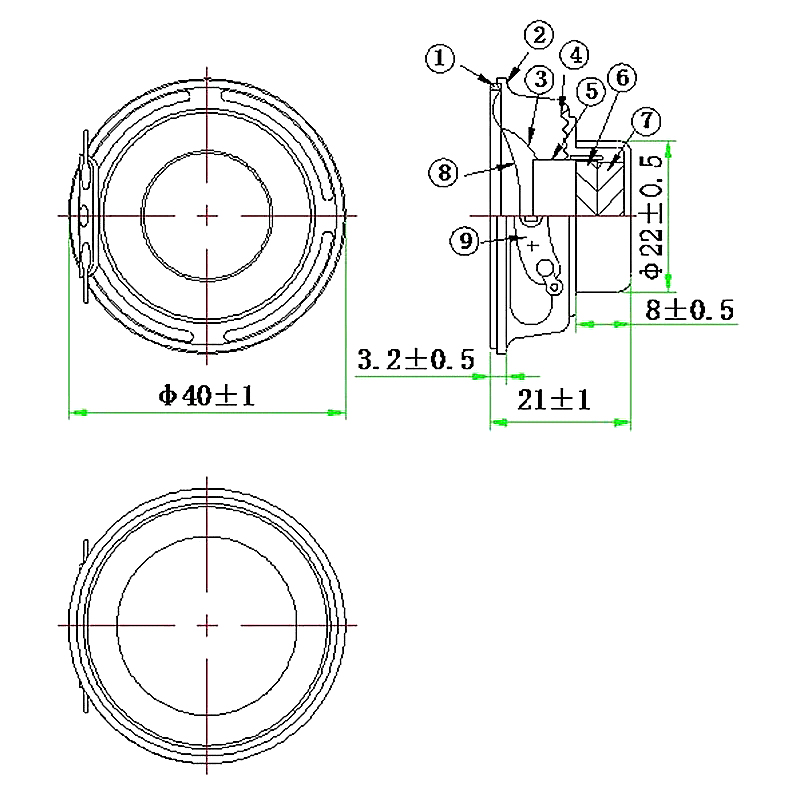

Dimension:Φ40*21H mm
Cone Material:PU+Paper
Edge:Paper
Nominal Power:3W
Maximum Power:5W
Impedance:4±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:200±20%Hz

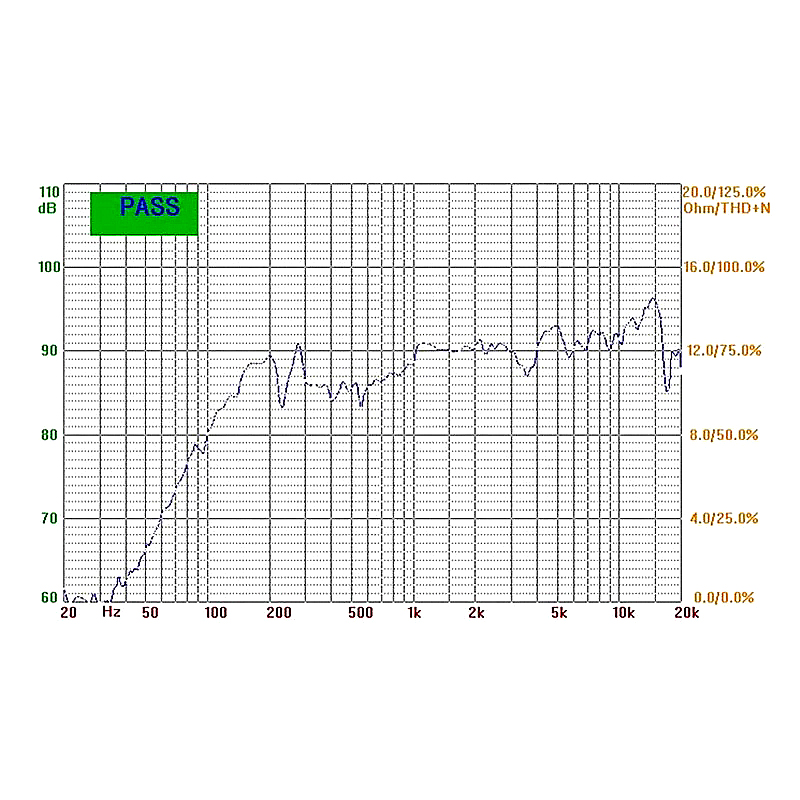

Response:Fo~20KHZ
S.P.L:88±3dB(at0.1W/0.1m 0.5, 0.8, 1.0, 2 KHZ)
Magnet Size:Φ12.5*4.0mm
Net weight:29g±8%
