Product Description

Loudspeaker 50mm YD50-39-50F32P-R  Full Range Equipment Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD50-39-50F32P-R

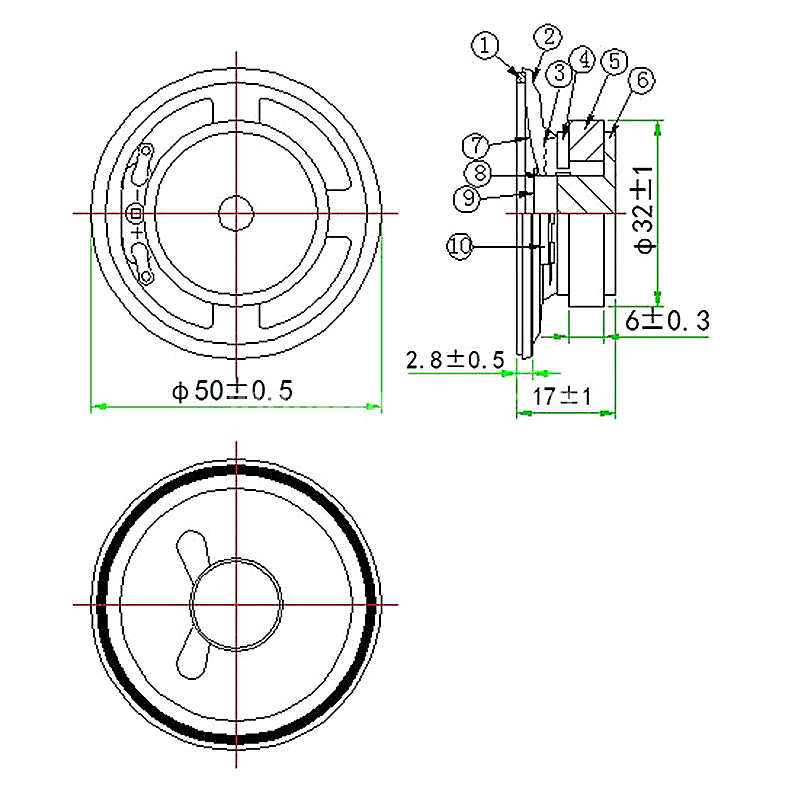

Dimension:Φ50*17H mm
Cone Material:PET
Edge:Paper
Nominal Power:2W
Maximum Power:3W
Impedance:50Ω±15%Ω
Voice coil:Φ13.28mm PL+CU
Fo:700±20%

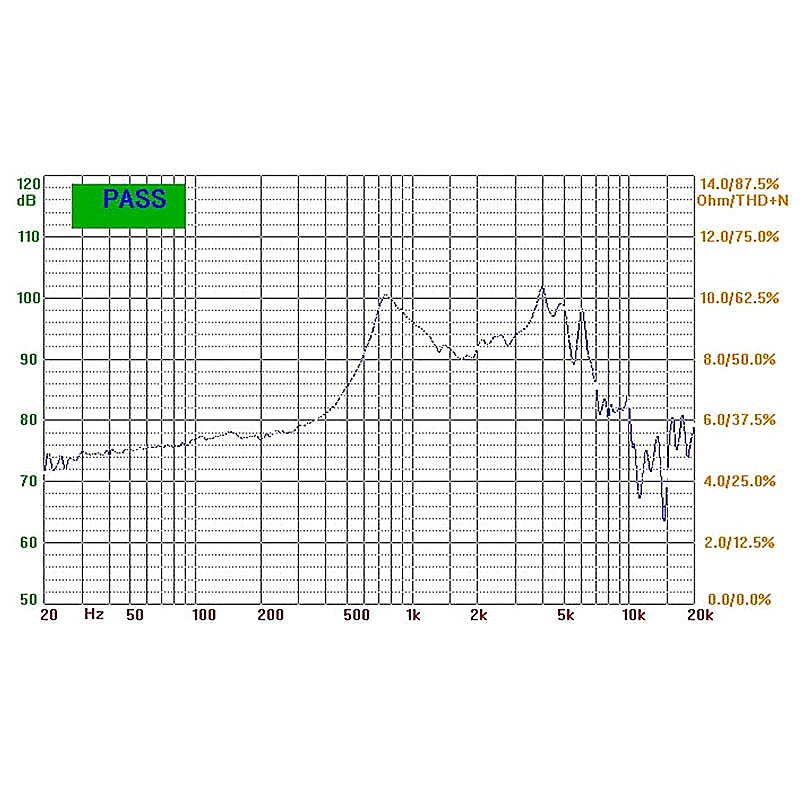

Response:Fo 700~5KHZ
S.P.L:94±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6mm
Net weight:50g±8%
