Loudspeaker

Loudspeaker 88mm YD88-02-4F60P-R Min Full Range Woofer Speaker Drivers

  • Loudspeaker 88mm YD88-02-4F60P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co LtdModelYD88-02-4F60P-RDimension:88*88*42H mmCone Material: PaperEdge:FoamNominal Power:5WMaximum Power:6WI

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD88-02-4F60P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 88mm YD88-02-4F60P-R Min Full Range Woofer Speaker Drivers-Changzhou Esuntech Co Ltd3.webp

ModelYD88-02-4F60P-R

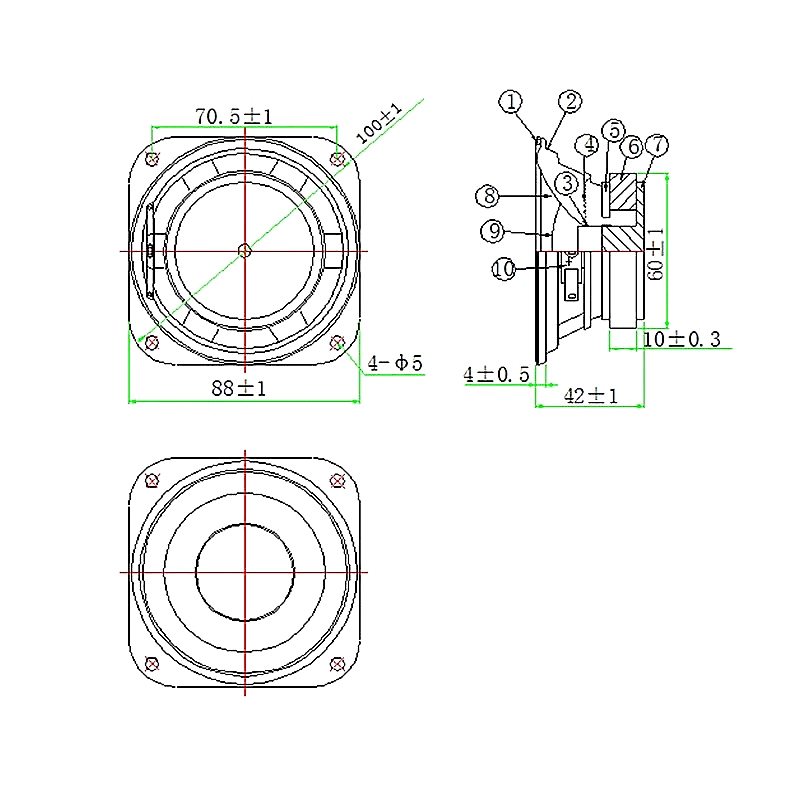

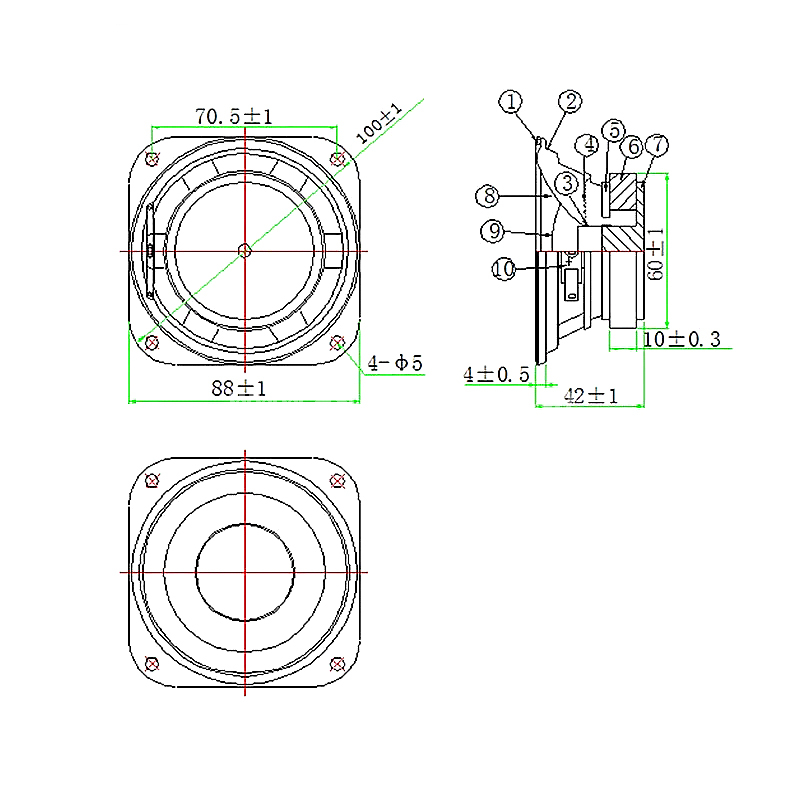

Dimension:88*88*42H mm
Cone Material: Paper
Edge:Foam
Nominal Power:5W
Maximum Power:6W
Impedance:4Ω±15%Ω
Voice coil:Φ19.45 ASV+Cu
Fo:130±20%
Response:Fo~16KHZ
S.P.L:89±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ60*32*10mm
Net weight:245g±8%
