Loudspeaker

Loudspeaker YD300-9A-6.5F100U 12 Inch Midrange Stereo Woofer , China Speaker Manufacturer

  • Model YD300-9A-6.5F100UDiameter:Φ304mmCone Material:PaperEdge:FoamNominal Power:45wMaximum Power:120wImpedance:6.515%ΩVoice coil:Φ38.6mmFo:3520%HzResponse:Fo-

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD300-9A-6.5F100U
  • PDF
  • Description
  • Order

Product Description

2


                         Model                  YD300-9A-6.5F100U

Diameter:

Φ304mm

Cone Material:

Paper

Edge:

Foam

Nominal Power:

45w

Maximum Power:

120w

Impedance:

6.5±15%Ω

Voice coil:

Φ38.6mm

Fo:

35±20%Hz

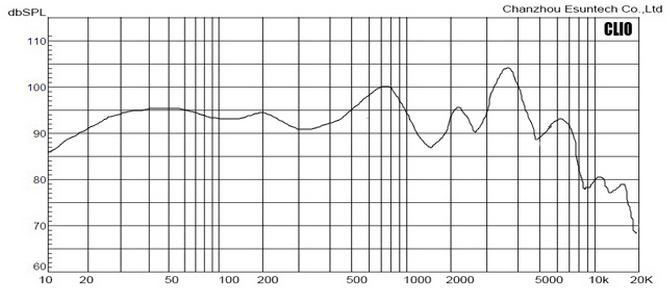

Response:

Fo-1kHz

S.P.L:

92±3dB/1W/0.5M

Magnet Size:

Φ100×60×20(Ferrite)

Net weight:

1575g

3
