3 Inch 77mm YD77-3A-8F32P-R Mid Range High Quality Loudspeaker Unit 8ohm 5W

  • Diameter:Φ77mmCone Material:PaperEdge:PaperNominal Power:2wMaximum Power:3wImpedance: 815%ΩVoice coil:Φ13.3mmFo:30020%HzResponse:Fo-20kHzS.P.L:882dB/1.0W/0.5MMagnet Size:Φ32Φ186(Ferrite)Net weight:65

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-3A-8F32P-R
  • PDF
  • Description
  • Order

Product Description

2

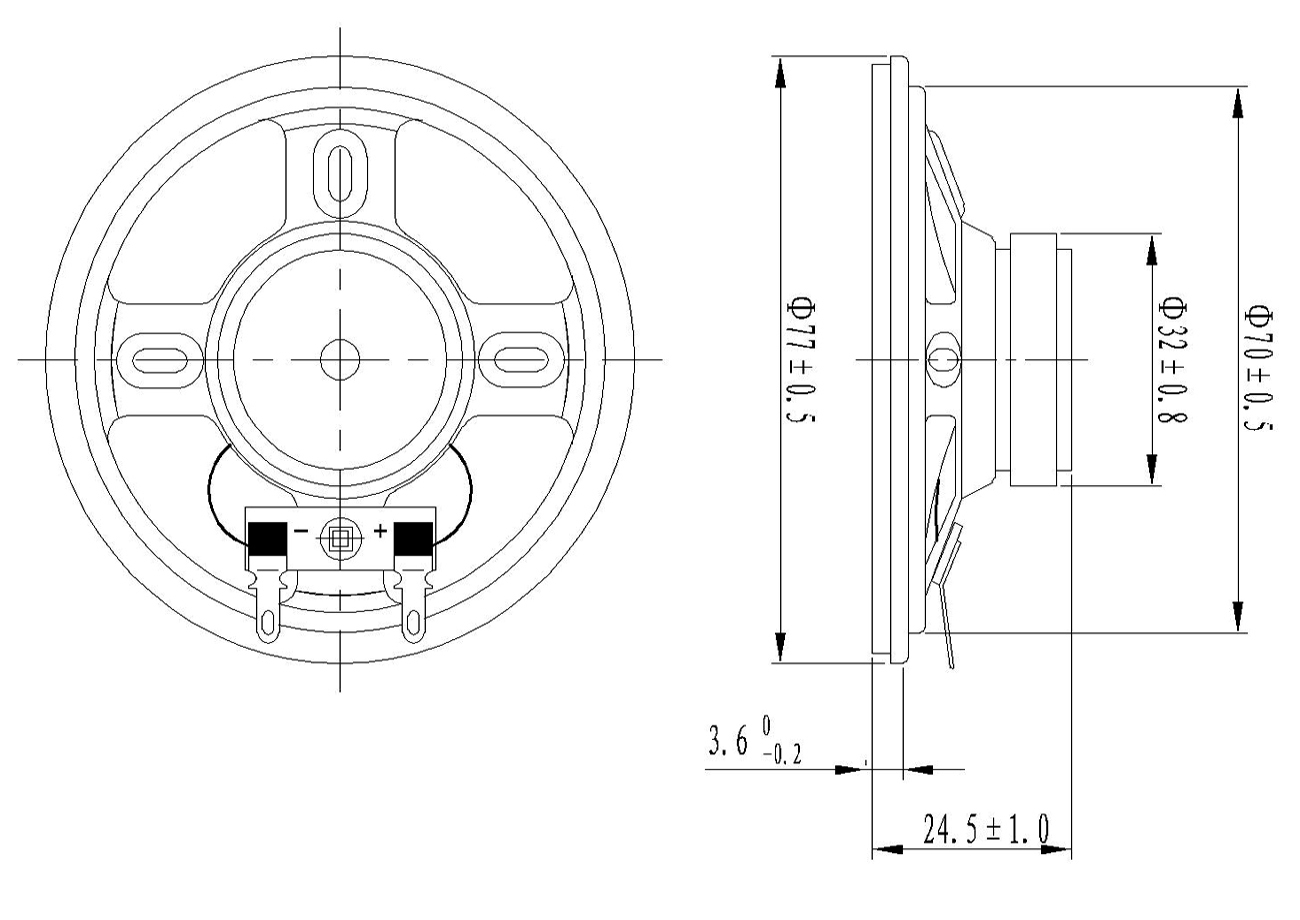

Diameter:

Φ77mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

2w

Maximum Power:

3w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

300±20%Hz

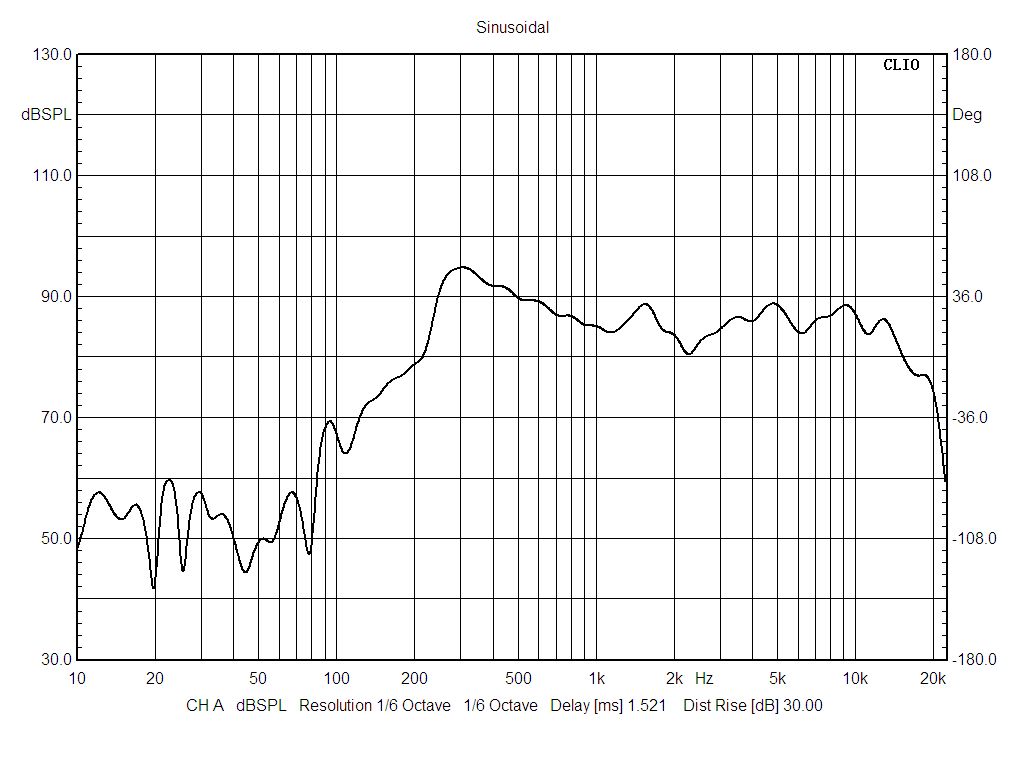

Response:

Fo-20kHz

S.P.L:

88±2dB/1.0W/0.5M

Magnet Size:

Φ32×Φ18×6(Ferrite)

Net weight:

65g

3
