Loudspeaker 66mm YD66-39-8F40P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 66mm YD66-39-8F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD66-39-8F40P-RDimension:Φ66*37H mmCone Material:PaperEdge:RubberNominal Power:10WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-39-8F40P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 66mm YD66-39-8F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd





ModelYD66-39-8F40P-R

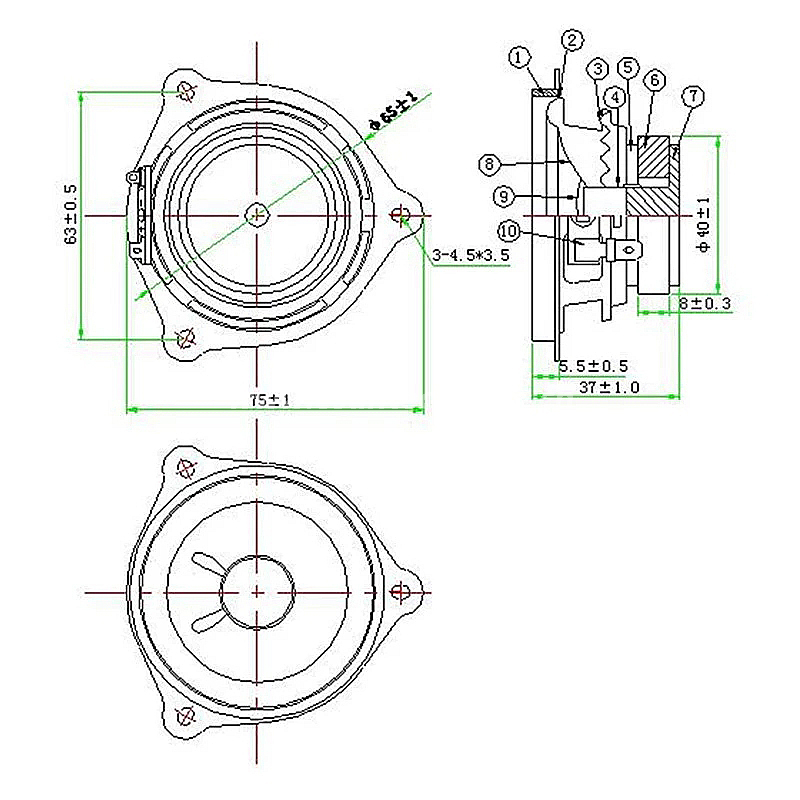

Dimension:Φ66*37H mm
Cone Material:Paper
Edge:Rubber
Nominal Power:10W
Maximum Power:12W
Impedance:8±15%Ω
Voice coil:Φ14.28mm  ASV+Cu
Fo:150±20%Hz

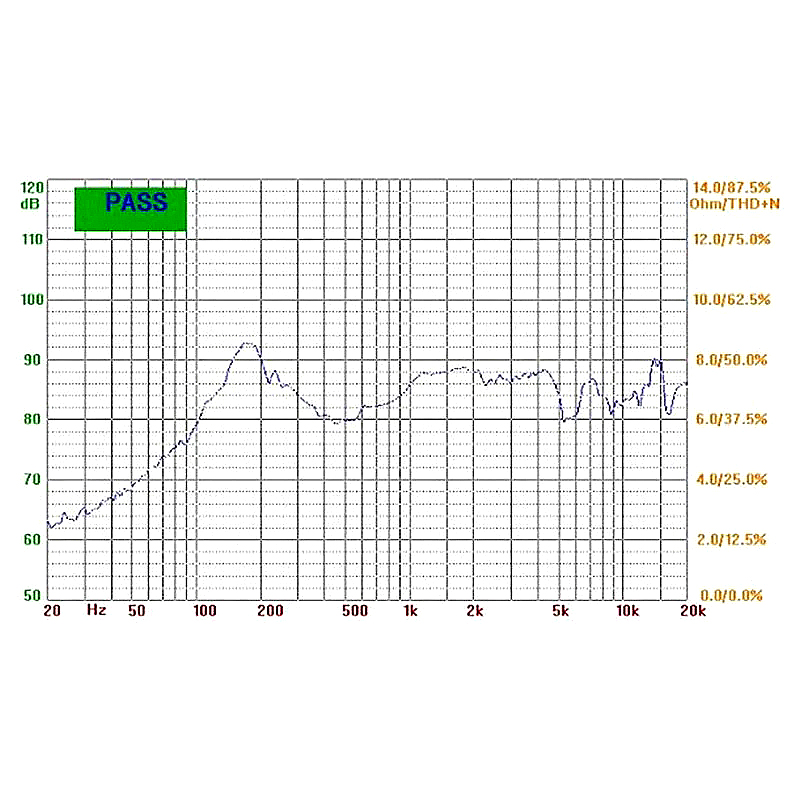

Response:Fo~20KHZ
S.P.L:88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40*19*8mm
Net weight:114g±8%
