Loudspeaker YD50-01-8F32P-R 50mm 2 Inch Min Full Range Super Loud intercom Speaker Drivers

  • Model YD50-01-8F32P-RDiameter:Φ50mmCone Material:PaperEdge:PaperNominal Power:0.25wMaximum Power:0.5wImpedance:815%ΩVoice coil:Φ13.3mmFo:45020%HzResponse:Fo-

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-01-8F32P-R
  • PDF
  • Description
  • Order

Product Description

2 拷贝

                           Model                 YD50-01-8F32P-R

Diameter:

Φ50mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.25w

Maximum Power:

0.5w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

450±20%Hz

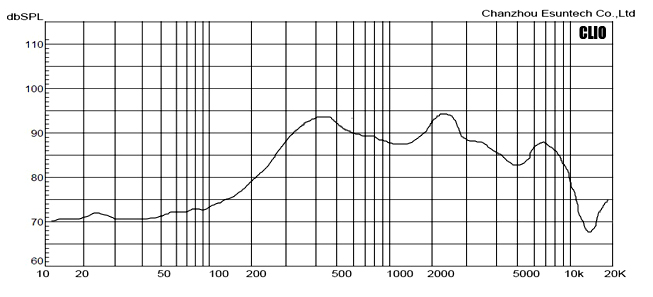

Response:

Fo-4.5kHz

S.P.L:

84±3dB/W/M

Magnet Size:

Φ35×Φ18×6(Ferrite)

Net weight:

51g
