Loudspeaker YD77-01-8F32P 3 Inch Full Range Round Loudspeaker Driver Raw Speaker Parts

  • Model YD77-01-8F32PDiameter:Φ77mmCone Material:PaperEdge:PaperNominal Power:0.5wMaximum Power:1.0wImpedance: 815%ΩVoice coil:Φ13.3mmFo:35020%HzResponse:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-01-8F32P
  • PDF
  • Description
  • Order

Product Description

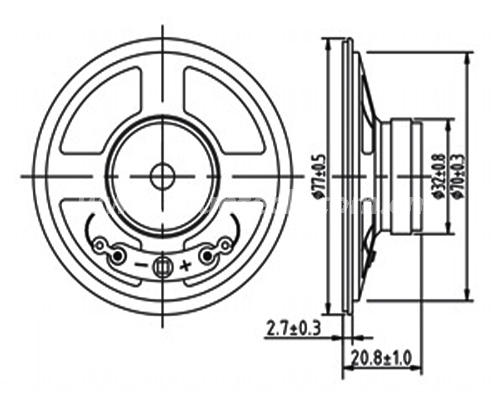

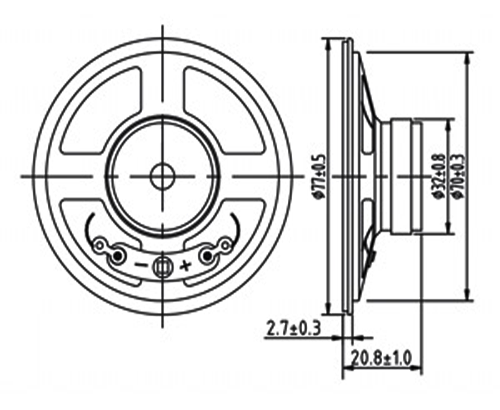

2

                            Model                     YD77-01-8F32P

Diameter:

Φ77mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

0.5w

Maximum Power:

1.0w

Impedance:

8±15%Ω

Voice coil:

Φ13.3mm

Fo:

350±20%Hz

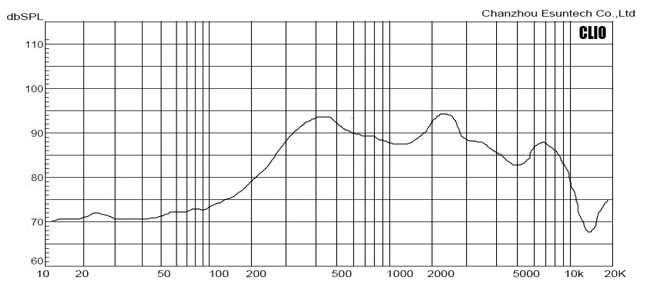

Response:

Fo-4.5kHz

S.P.L:

88±2dB/1.0W/0.5M

Magnet Size:

Φ32×Φ18×6(Ferrite)

Net weight:

60g

3
