Loudspeaker

Loudspeaker YD66-22-8F28.5P 2.5 Inch Plastic Frame Loudspeaker Driver 8ohm 1 watt

  • Model YD66-22-8F28.5PDiameter:Φ66mmCone Material:PaperEdge:PaperNominal Power:1.0wMaximum Power:2.0wImpedance: 815%ΩVoice coil:Φ10.3mmFo:34020%HzResponse:Fo-3.5kH

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD66-22-8F28.5P
  • PDF
  • Description
  • Order

Product Description

2

                      Model                 YD66-22-8F28.5P

Diameter:

Φ66mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

1.0w

Maximum Power:

2.0w

Impedance:

8±15%Ω

Voice coil:

Φ10.3mm

Fo:

340±20%Hz

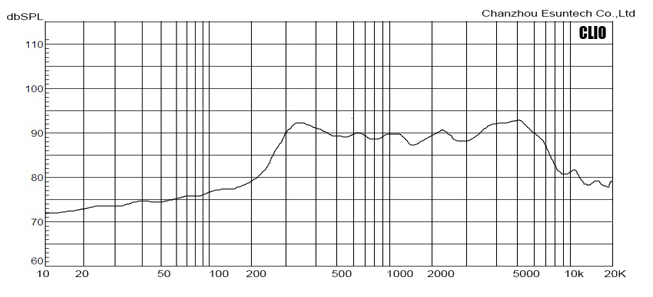

Response:

Fo-3.5kHz

S.P.L:

86±3dB/W/M

Magnet Size:

Φ28.5×Φ12.5×5(Ferrite)

Net weight:

48g

3
