Loudspeaker 50mm YD50-26-4N15P-R Min Full Range bluetooth Audio Speaker Drivers

  • Loudspeaker 50mm YD50-26-4N15P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-26-4N15P-RDimension:Φ50*21H mmCone Material:PaperEdge:PUNominal Power:3WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-26-4N15P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 50mm YD50-26-4N15P-R Min Full Range bluetooth Audio Speaker Drivers-Changzhou Esuntech Co Ltd



ModelYD50-26-4N15P-R

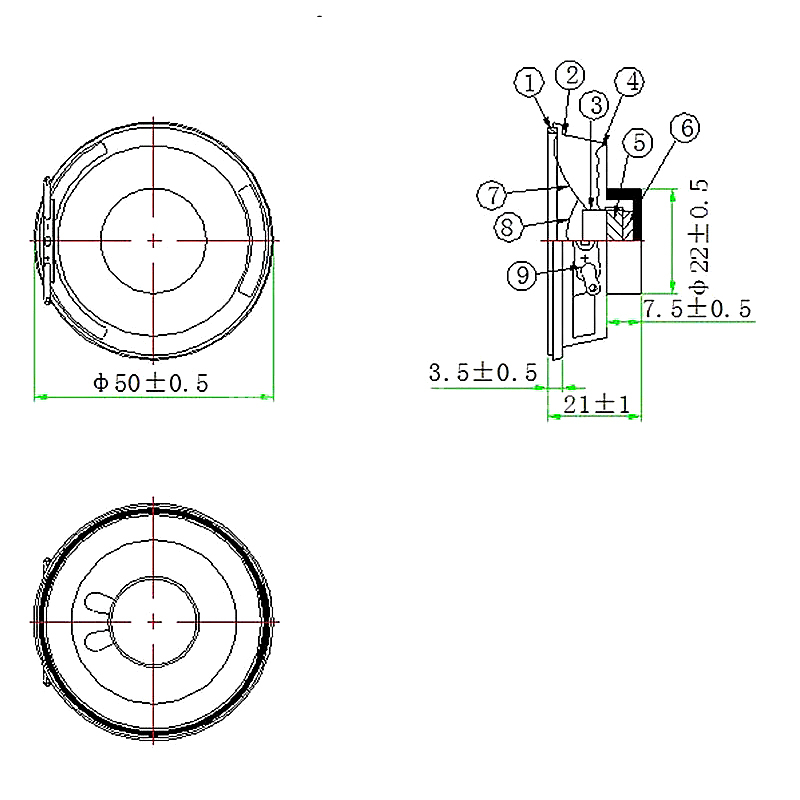

Dimension:Φ50*21H mm
Cone Material:Paper
Edge:PU
Nominal Power:3W
Maximum Power:4W
Impedance:4±15%Ω
Voice coil:Φ16.28mm KSV+Cu
Fo:160±20%Hz

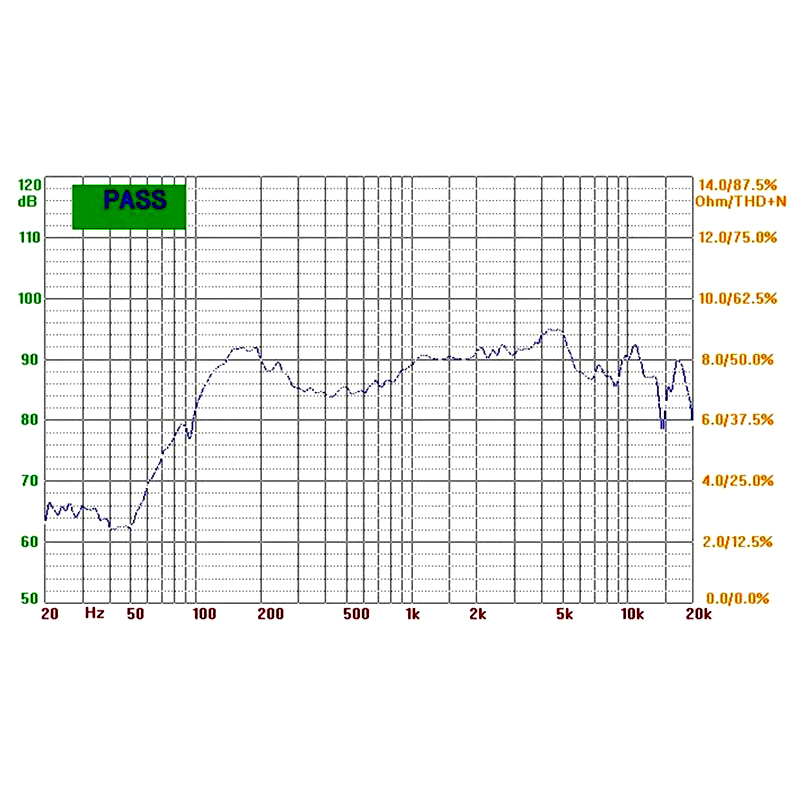

Response:160-20KHZ
S.P.L:88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ15*4.0mm
Net weight:32g±8%
