Loudspeaker

Loudspeaker YD77-2-F32UT 3 Inch 4/8/16/32ohm Full Range Round Loudspeaker Driver Raw Speaker Parts with Magnet Cover

  • Model YD77-2-F32UTDiameter:Φ78mmCone Material:PaperEdge:Foam/ClothNominal Power:10wMaximum Power:15wImpedance:4/8/16/3215%ΩVoice coil:Fo:22020%HzResponse:

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD77-2-F32UT
  • PDF
  • Description
  • Order

Product Description

2

                          Model                     YD77-2-F32UT

Diameter:

Φ78mm

Cone Material:

Paper

Edge:

Foam/Cloth

Nominal Power:

10w

Maximum Power:

15w

Impedance:

4/8/16/32±15%Ω

Voice coil:


Fo:

220±20%Hz

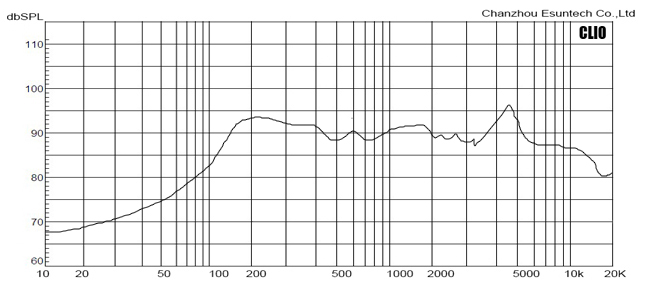

Response:

Fo-10kHz

S.P.L:

88±3dB/1W/0.5M

Magnet Size:

Φ32×18×6(Ferrite)


Φ32×18×6(Ferrite)

Net weight:

91g

3
